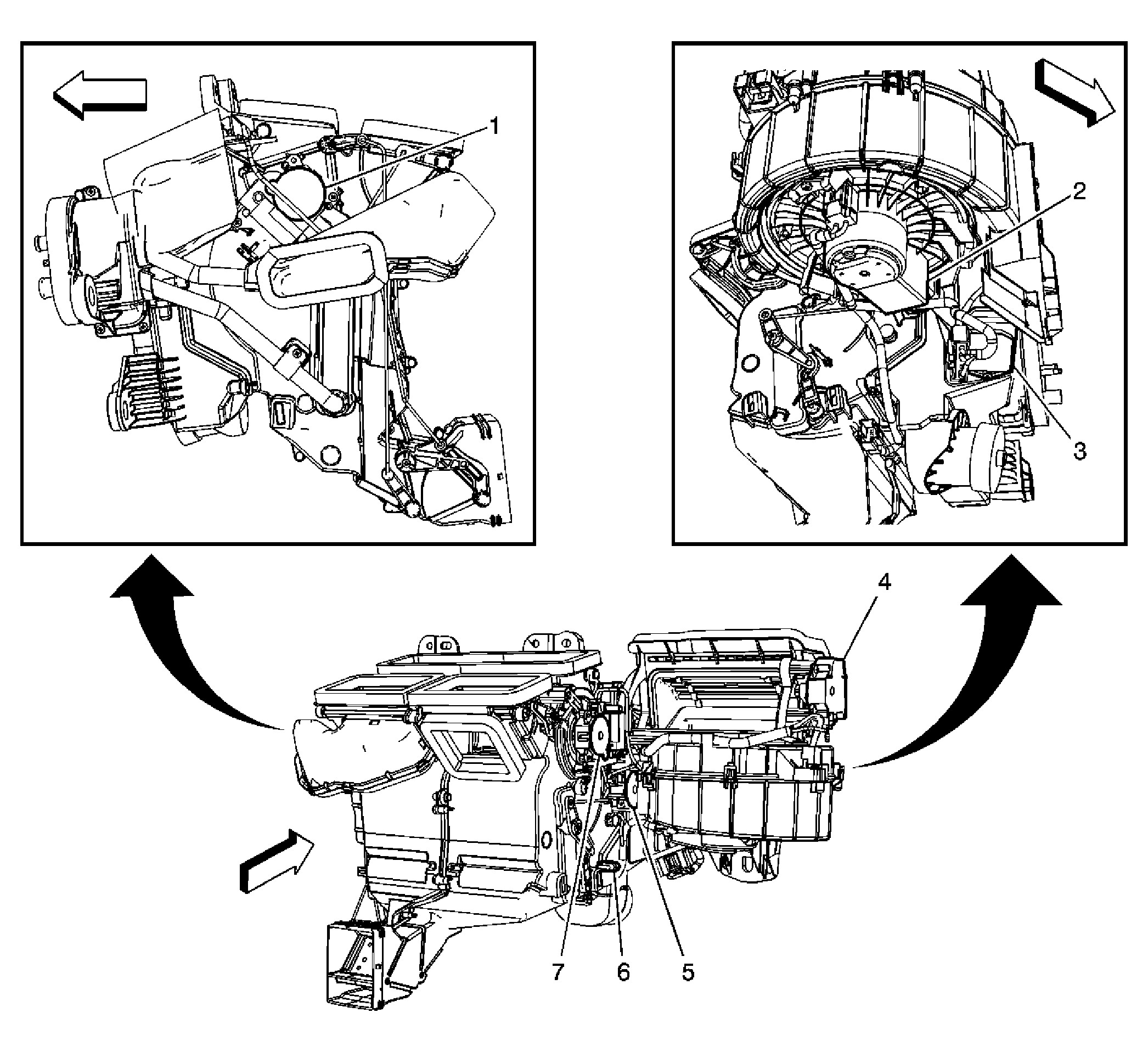

HVAC Module Components (CJ2)
HVAC Module Components (CJ2)
| Component Name |
Callout |
| Air Temperature Actuator- Left (CJ4/CJ2) |
1 |
| Blower Motor |
2 |
| Blower Motor Control Module |
3 |
| Recirculation Actuator |
4 |
| Air Temperature Actuator- Front Right (CJ4/CJ2) |
5 |
| EVAP Temperature Sensor |
6 |
| Mode Actuator |
7 |
Courtesy of GENERAL MOTORS COMPANY
