Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

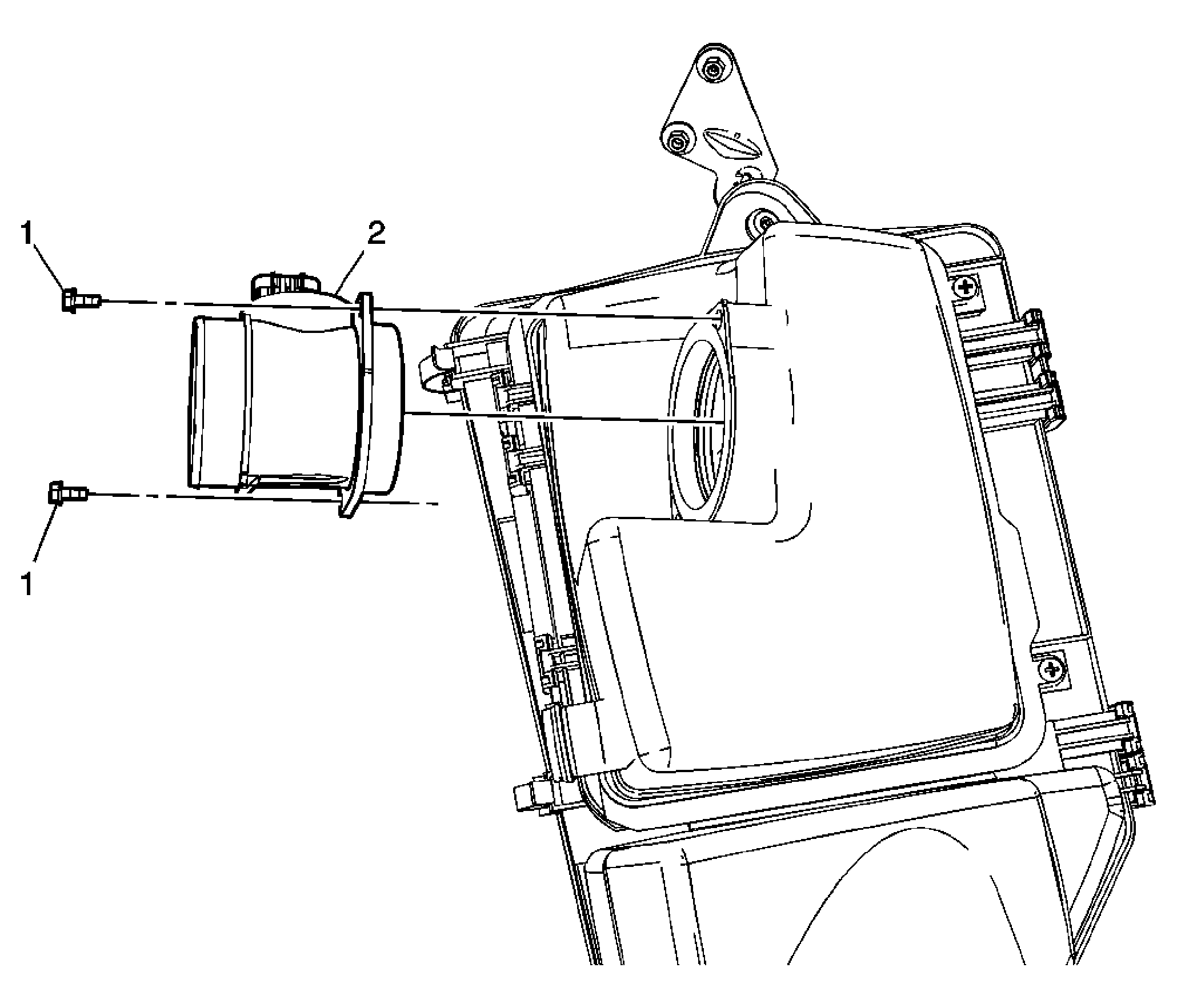

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the air outlet duct from the mass air flow sensor. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2) Tighten 4 N.m (35 lb in) |
| 2 | Mass Airflow Sensor/Intake Air Temperature Sensor Procedure Disconnect the electrical connector. |
