High Speed Serial Data Wiring Schematics

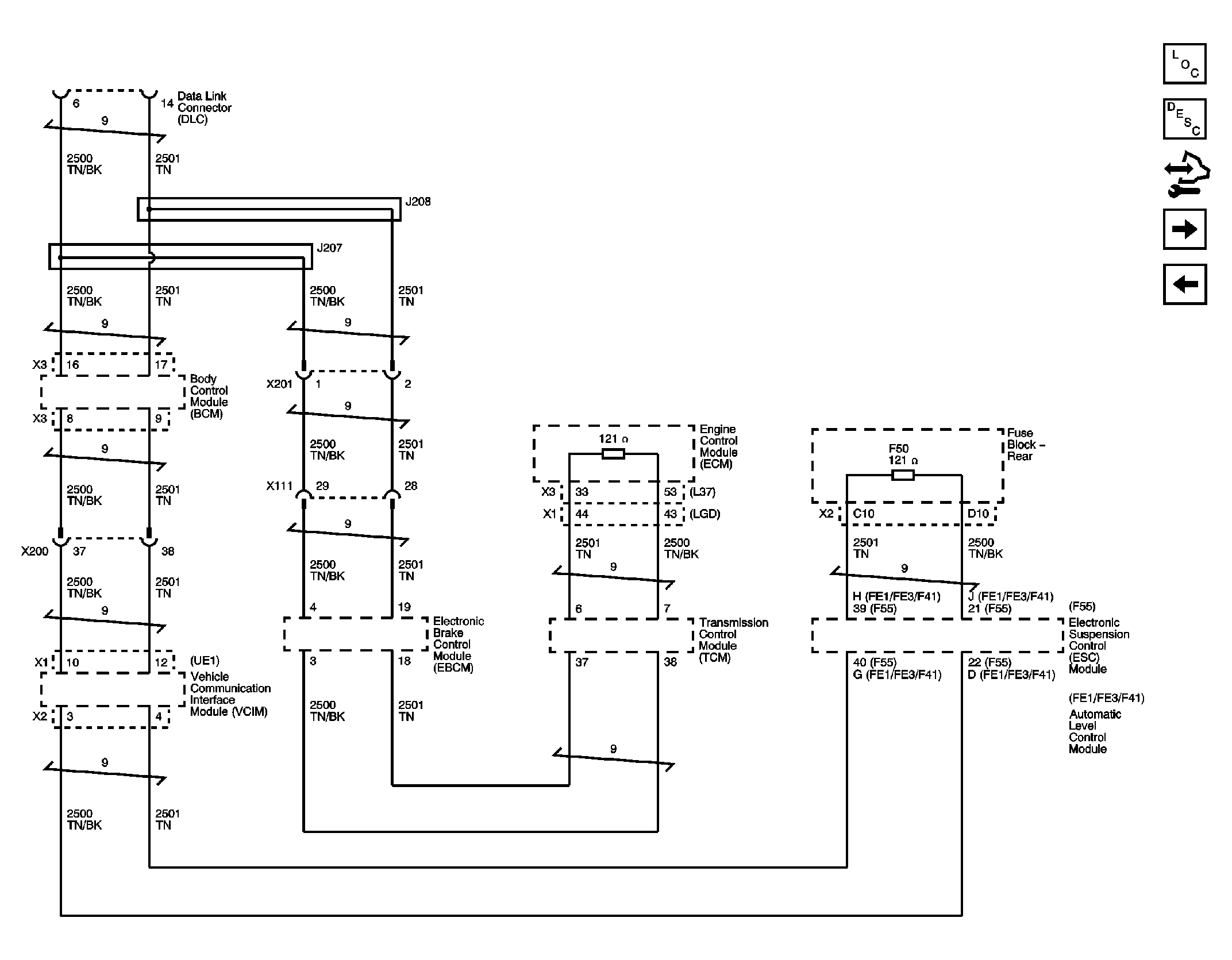

Fig 1: High Speed Serial Data Wiring Schematics
GM2403543Courtesy of GENERAL MOTORS COMPANY
