Serial Data Wake Up Wiring Schematics

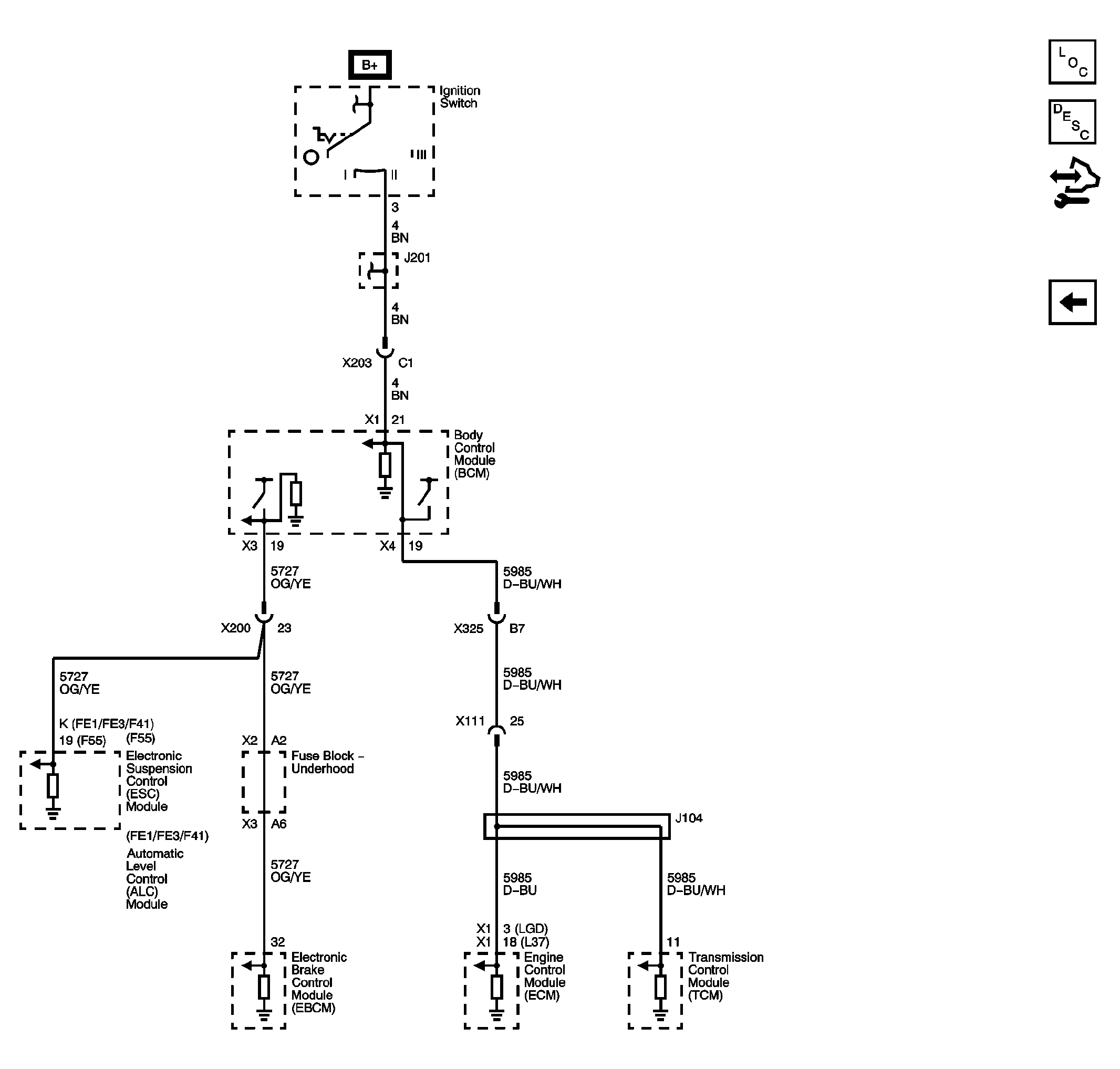

Fig 1: Serial Data Wake Up Wiring Schematics
GM2403546Courtesy of GENERAL MOTORS COMPANY
