Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

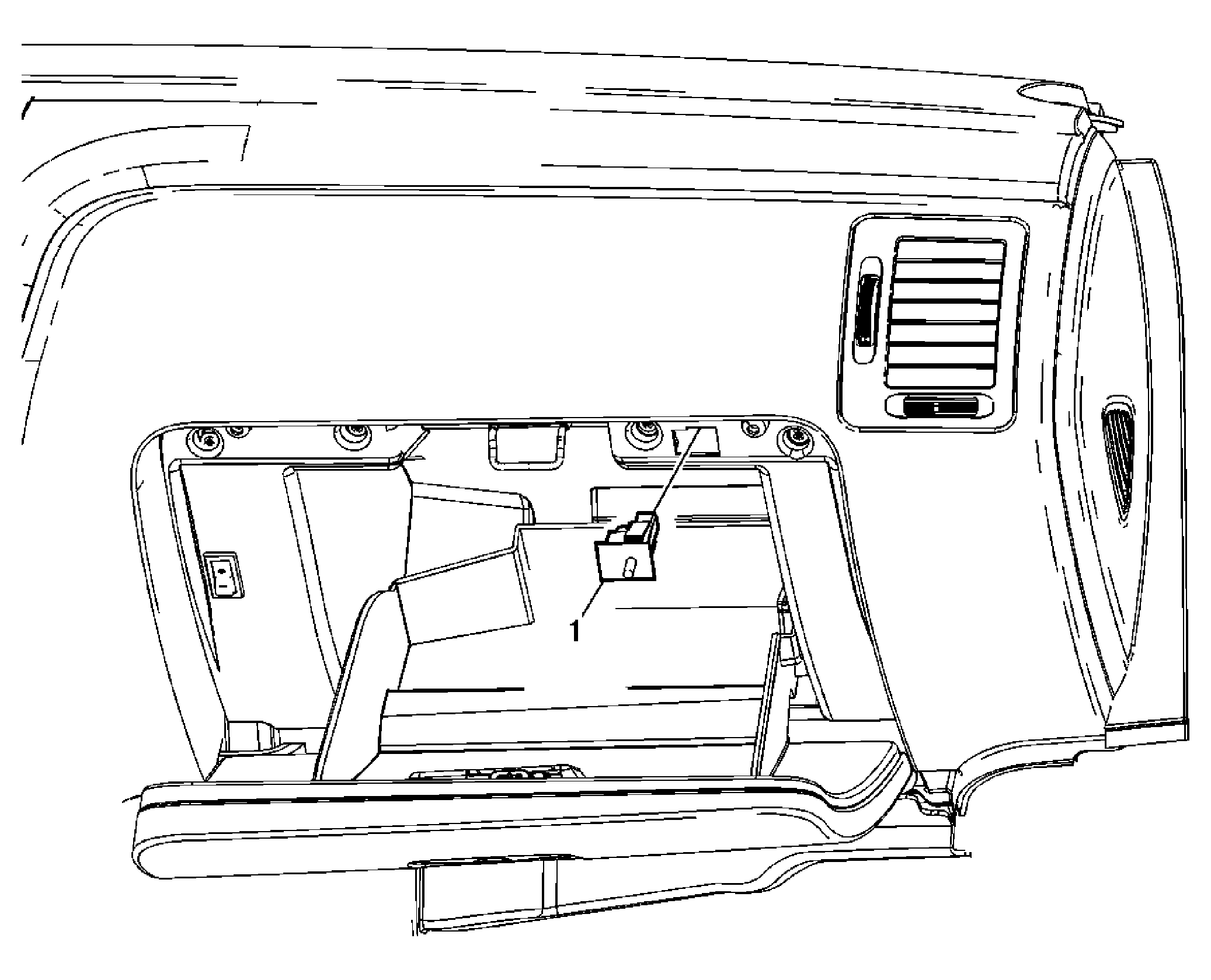

Fig 1: Instrument Panel (I/P) Compartment Lamp Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Compartment Lamp Switch Use a small flat bladed tool to release the switch from the storage compartment. Disconnect the electrical connector.
