Rear License Plate Lamp Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

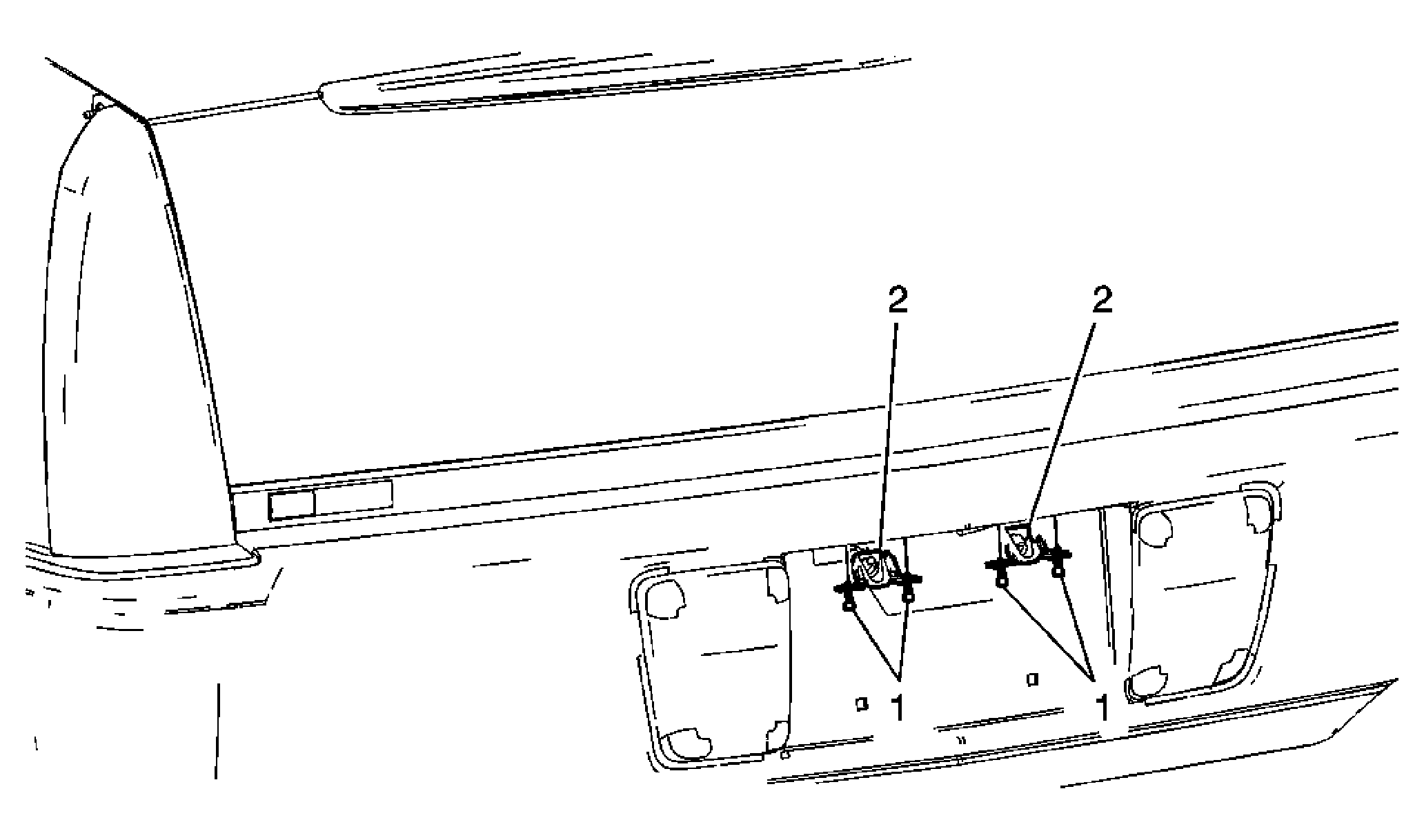

Fig 1: View Of License Plate Lamp & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear License Plate Lamp Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Rear License Plate Lamp Lens (Qty: 2) Push the lens forward then pull outward from the rear bumper fascia opening. Twist the lamp electrical connector counter-clockwise and remove from the lens. Pull the lamp bulb outward to replace.
