Turn Signal Multifunction Switch Replacement

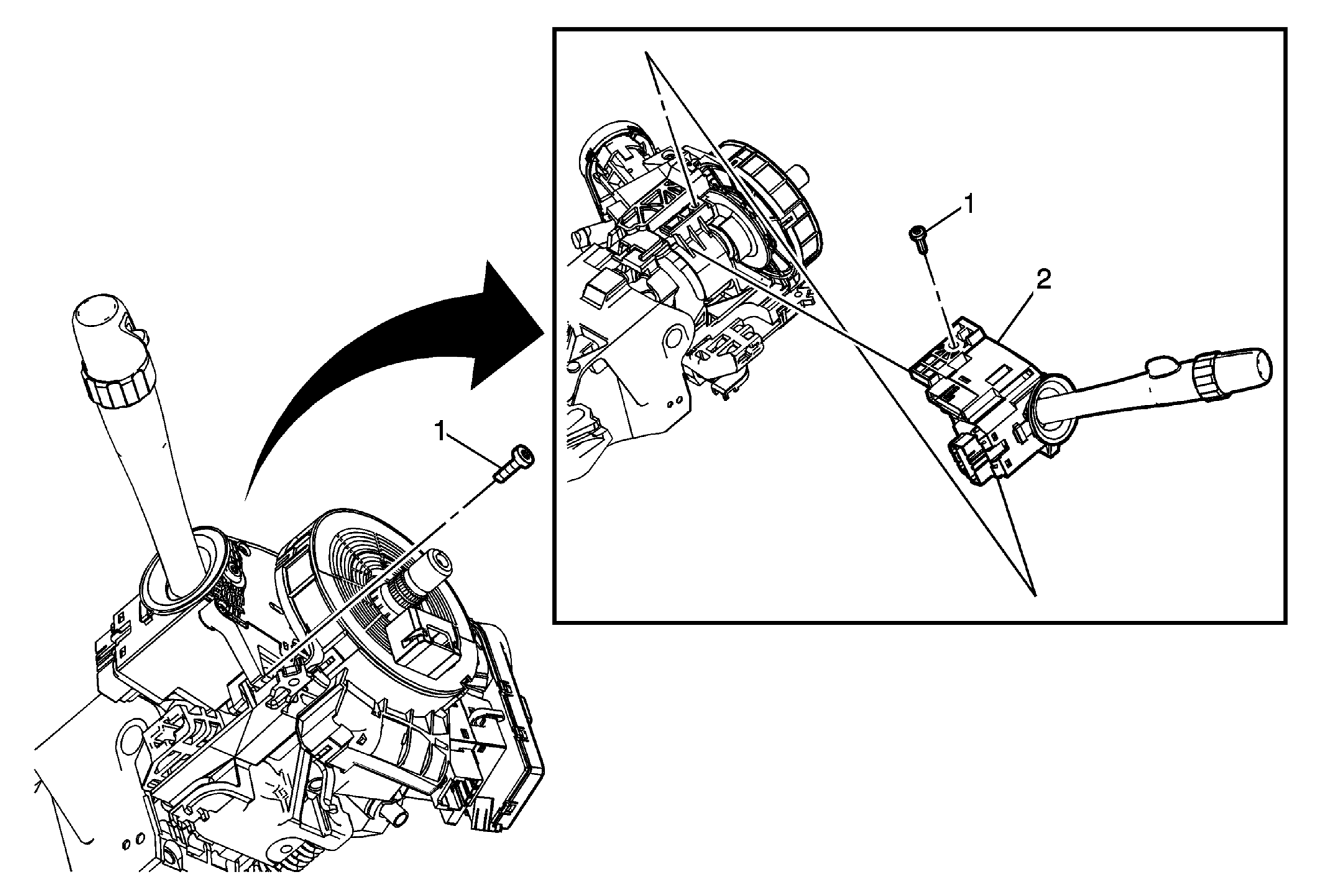

Fig 1: View of Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Turn Signal Multifunction Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed.
