Battery Negative Cable Replacement

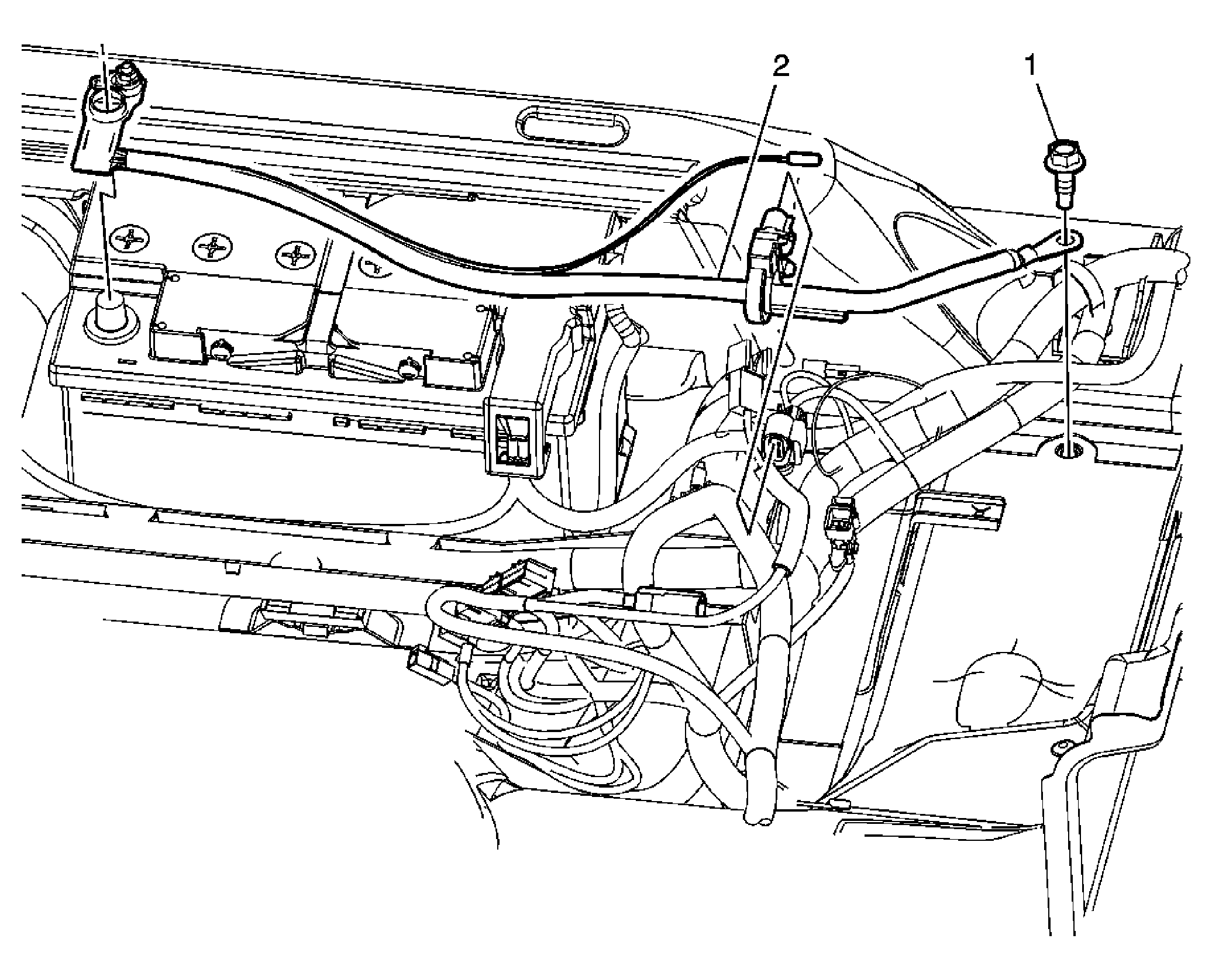

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
1	Negative Battery Cable Fastener Tighten 36 N.m (27 lb ft)
2	Negative Battery Cable Procedure Disconnect the current sensor harness connector Disconnect the small inline electrical connector.

Callout

Component Name

Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

Negative Battery Cable Fastener
Tighten
36 N.m (27 lb ft)

Negative Battery Cable

Procedure
