Removal Procedure

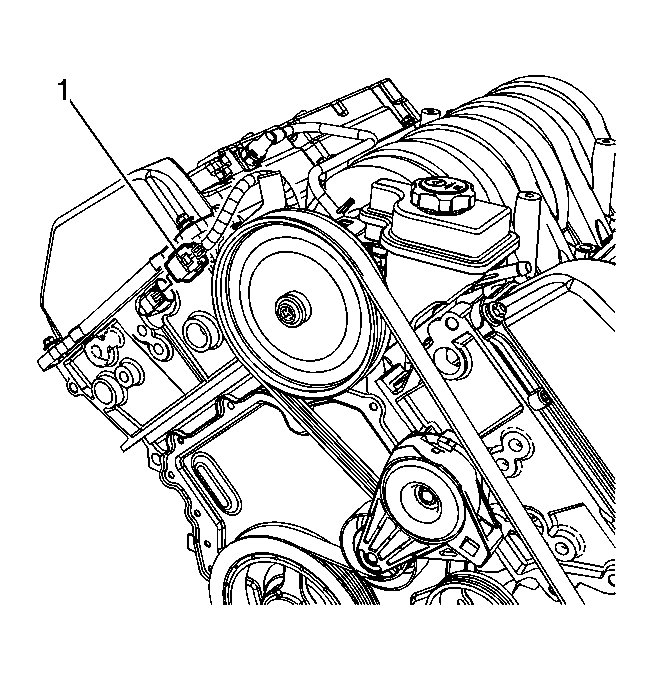

    Fig 1: Identifying CMP Sensor Wiring Harness Connector
    GM1672927Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the electrical connector (1) from the camshaft position (CMP) sensor.

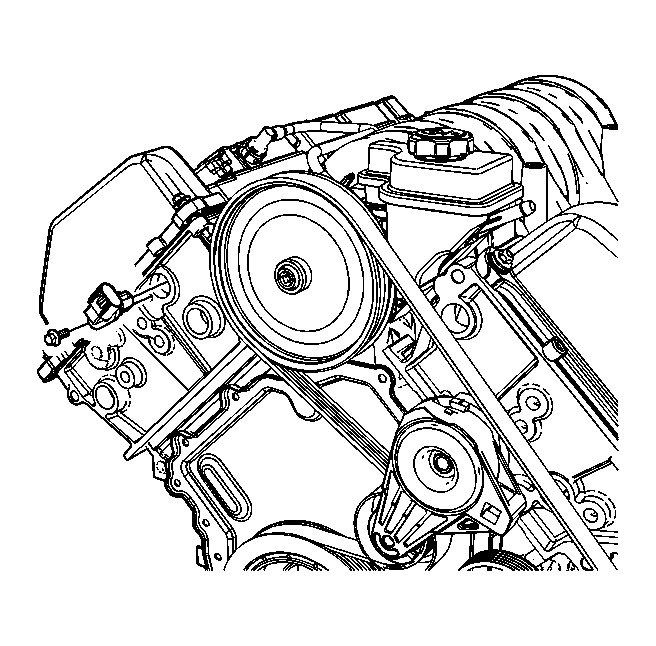

    2. Fig 2: Identifying CMP Sensor
    GM1672561Courtesy of GENERAL MOTORS COMPANY
  2. Remove the CMP sensor bolt.
  3. Remove the CMP sensor.
