Engine Coolant Temperature Sensor Replacement

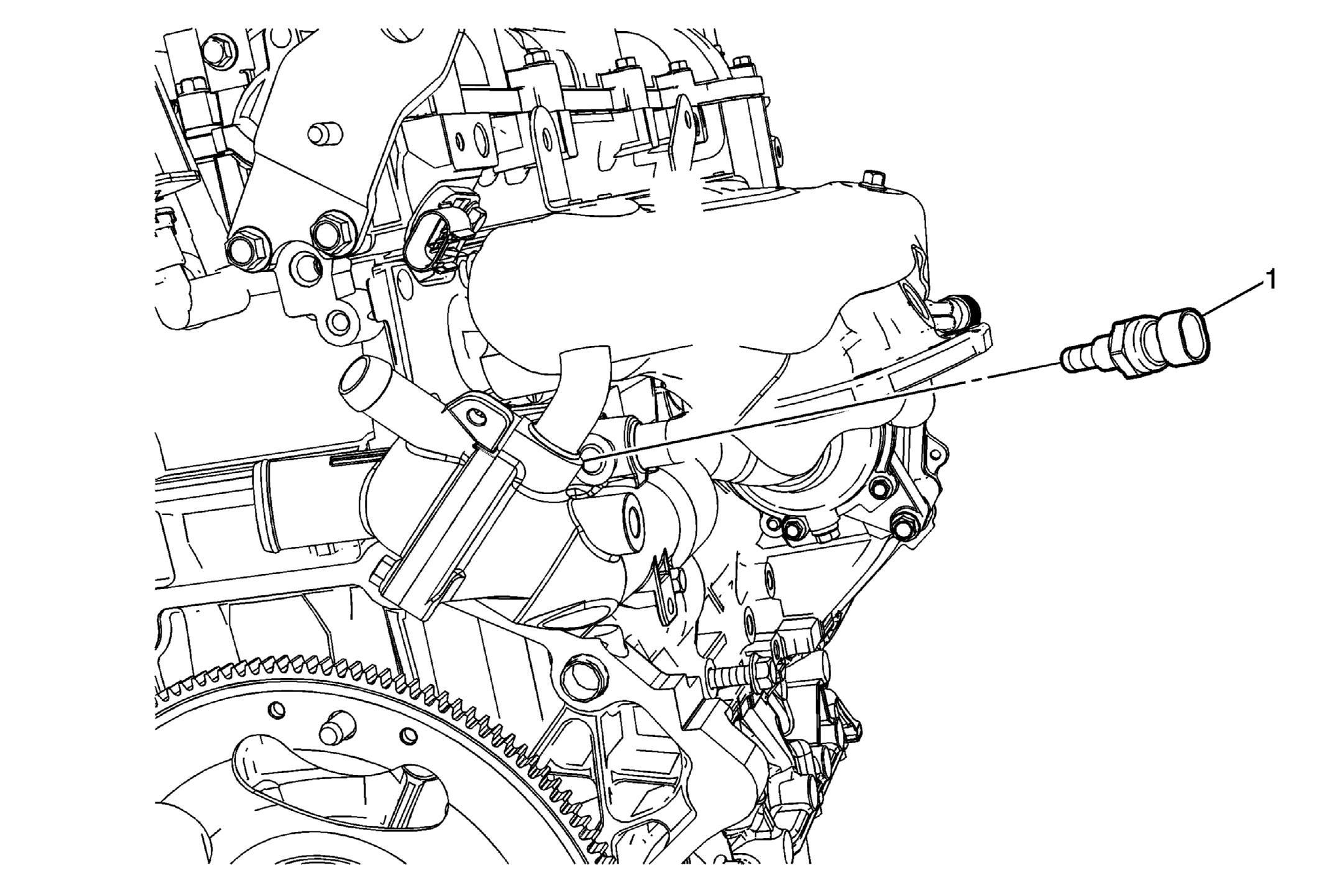

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure:  Disconnect the electrical connector. Tighten:  20 N.m (15 lb ft)
