Fuel Pump Cover Replacement (LAF)

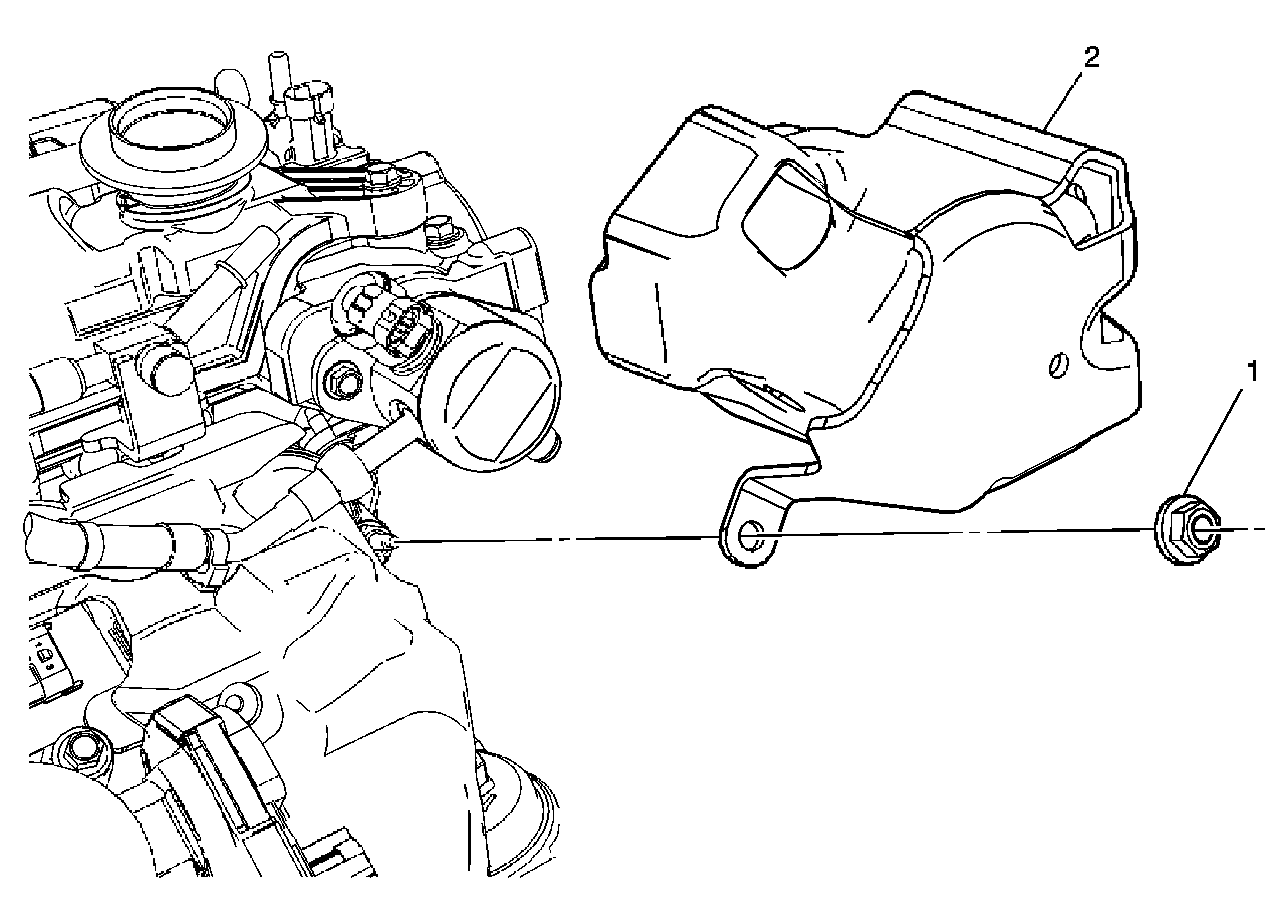

Fig 1: Fuel Pump Cover (LAF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump Cover Fastener CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Fuel Pump Cover
