Fuel Tank Pressure Sensor Replacement (NU6)

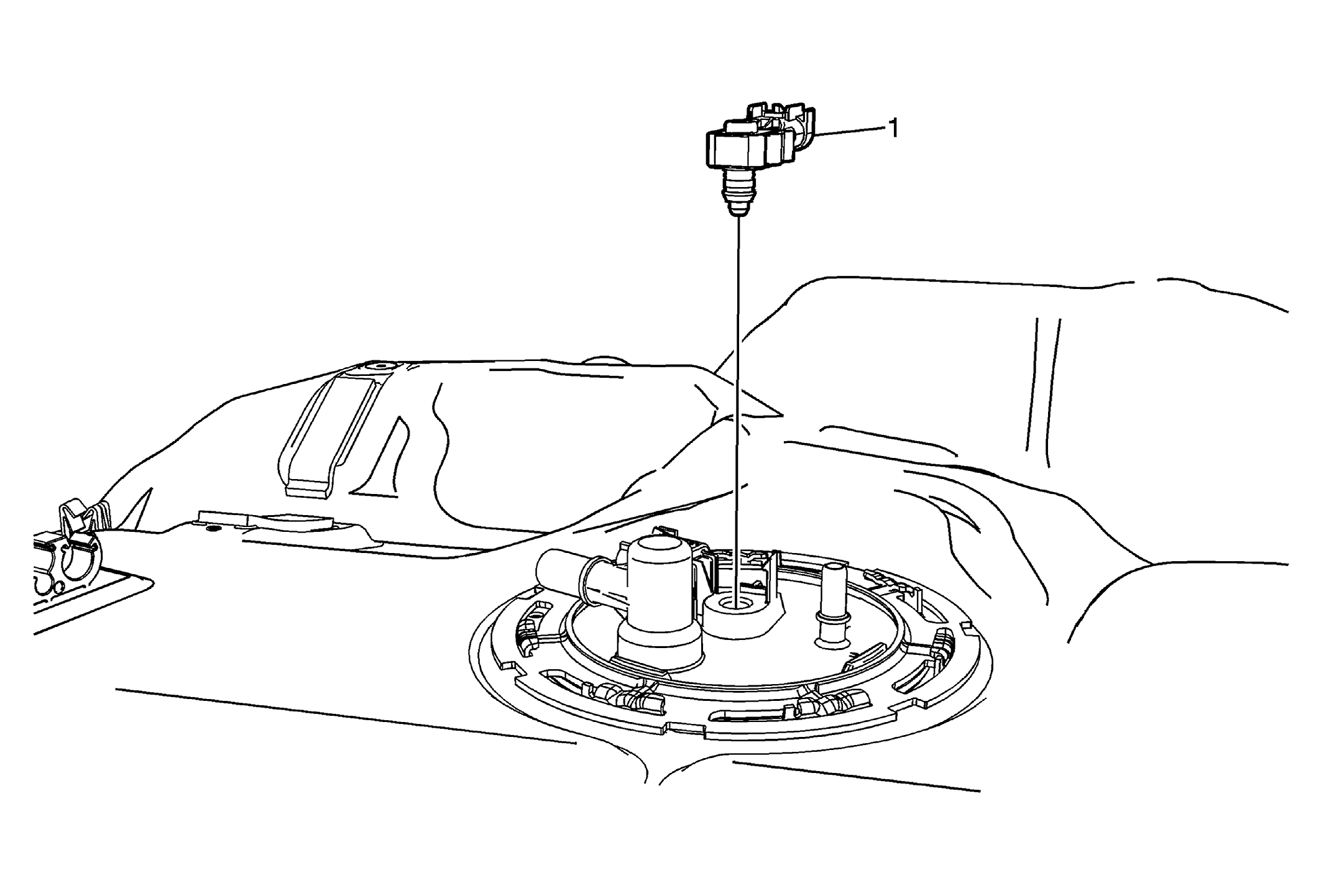

Fig 1: Fuel Tank Pressure Sensor (NU6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure:
Remove the fuel tank. Refer to Fuel Tank Replacement .

Fuel Tank Pressure Sensor

Procedure
