Manifold Absolute Pressure Sensor Replacement

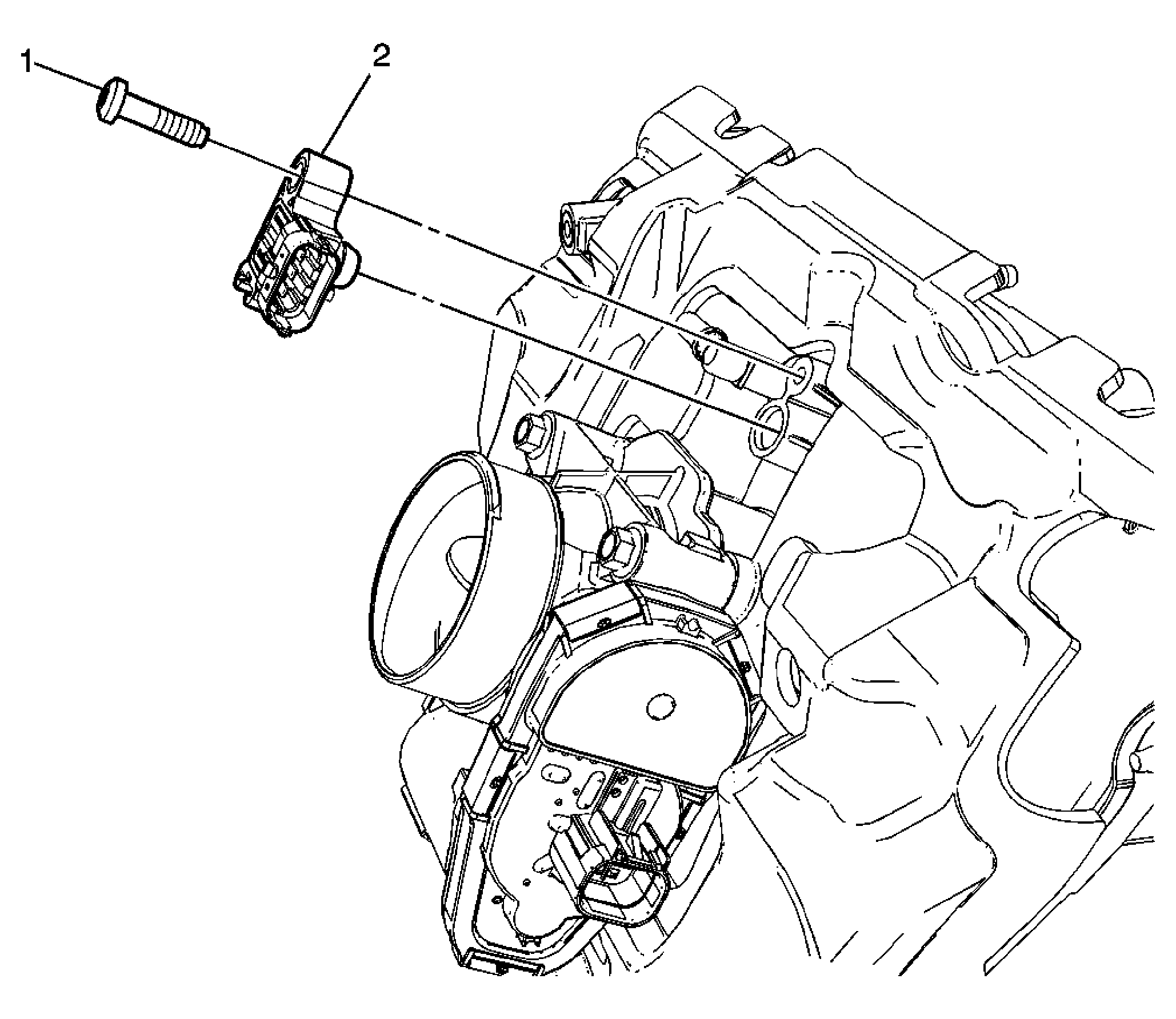

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten:  4 N.m (35 lb in)
2	Manifold Absolute Pressure Sensor
