Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

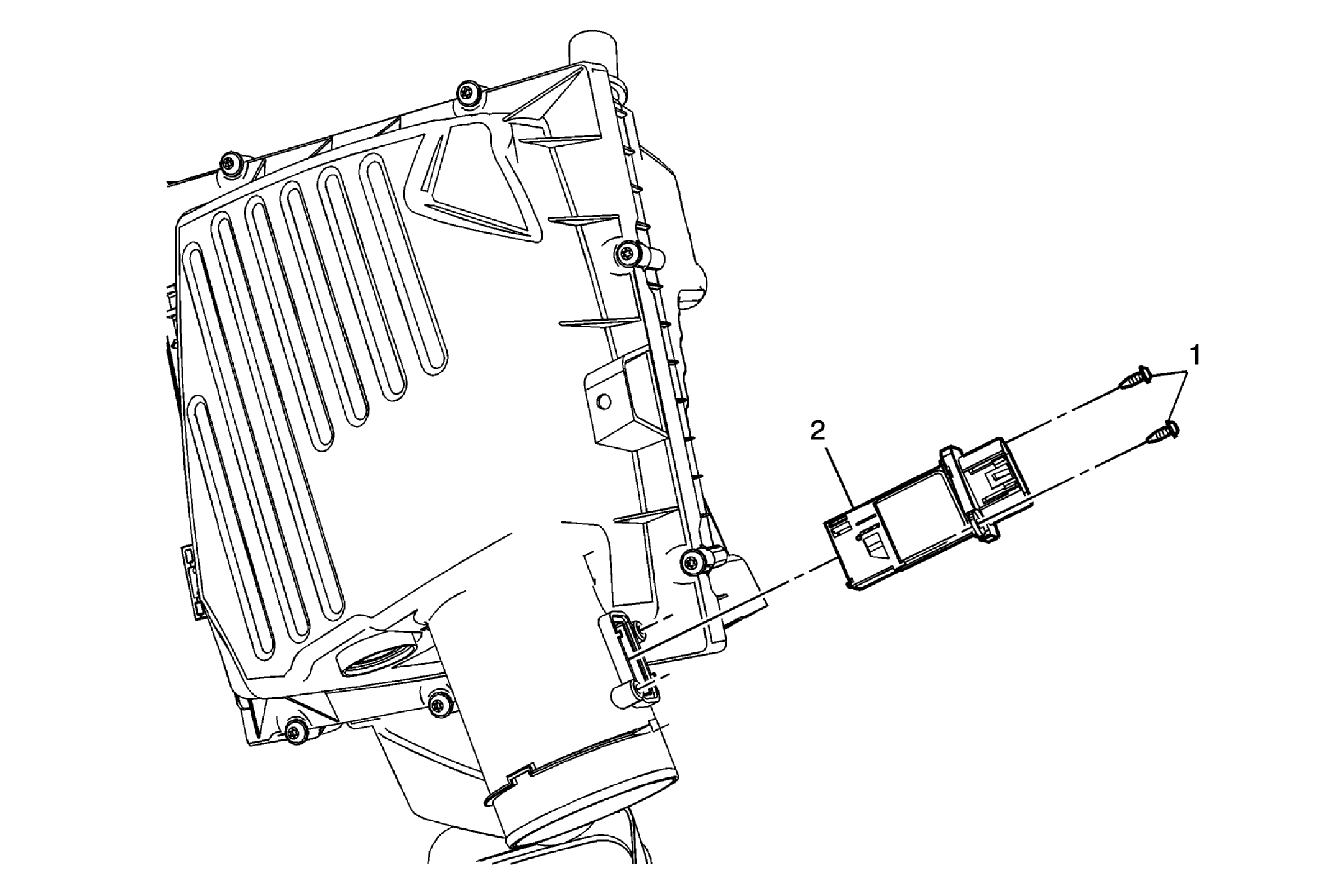

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 4 N.m (35 lb in) |
| 2 | Mass Airflow Sensor Procedure: Disconnect the electrical connector. |
