Power Steering Wiring Schematics

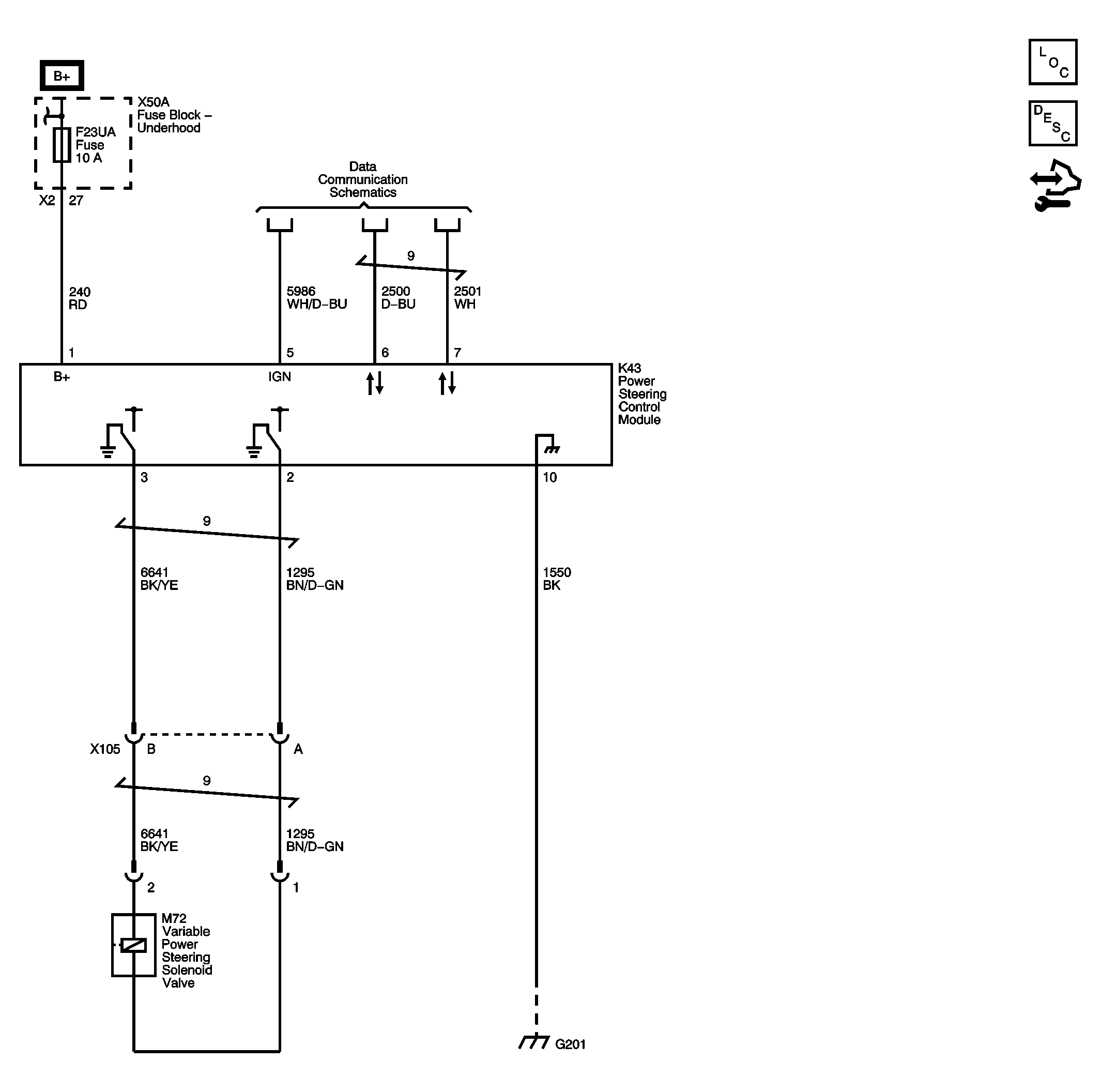

Fig 1: Variable Effort Steering (NXC) Wiring Schematic
GM2376637Courtesy of GENERAL MOTORS CORP.
