Communication Enable and Linear Interconnect Network (LIN)

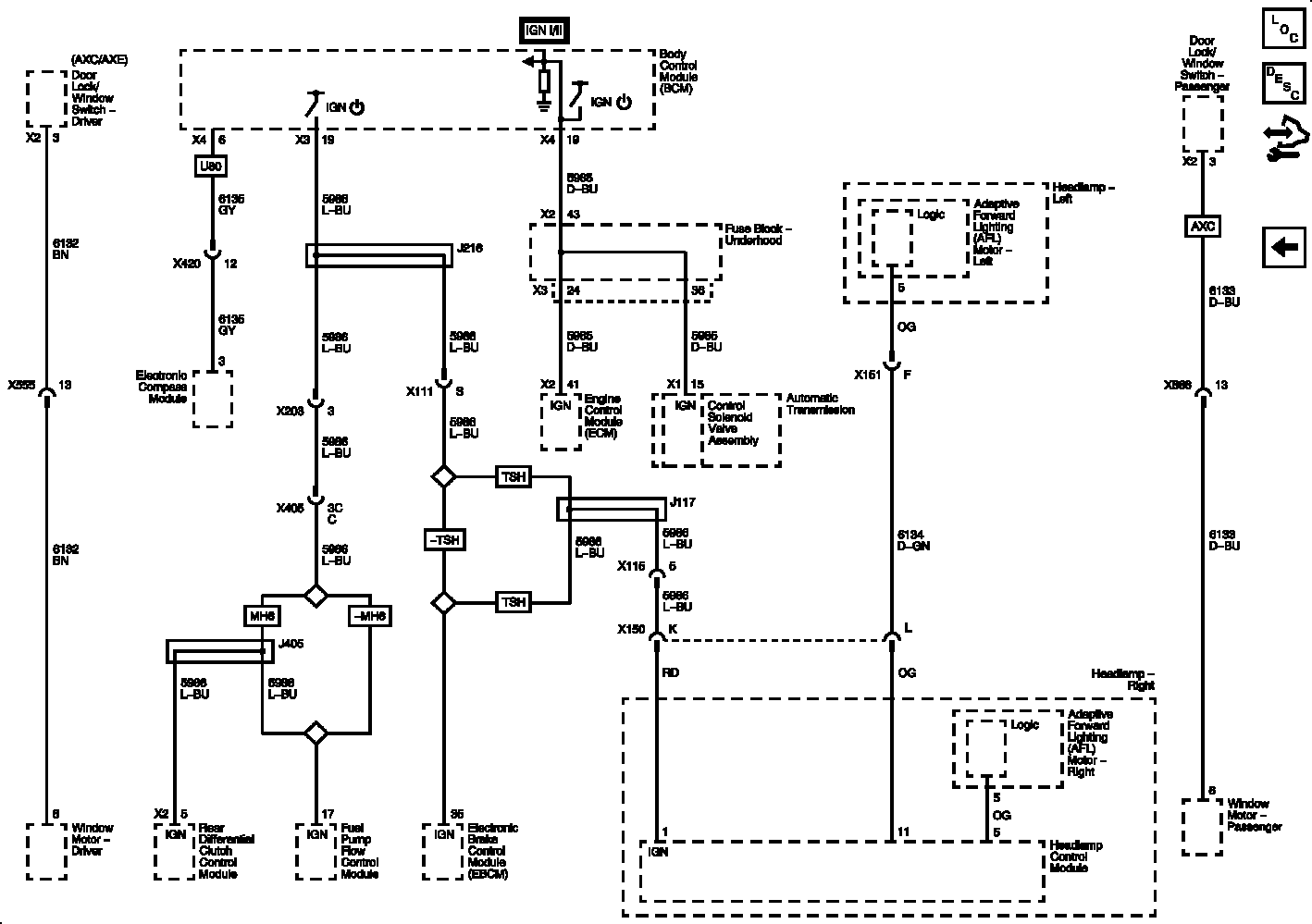

Fig 1: Communication Enable and Linear Interconnect Network (LIN) Wiring Schematic
GM2567481Courtesy of GENERAL MOTORS COMPANY
