Section 146 (Cellular System, Entertainment System, And Navigation System)
›
Schematic and Routing Diagrams
›
Radio/Navigation System Schematics
›
Secondary Controls
Secondary Controls
WARNING:
This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

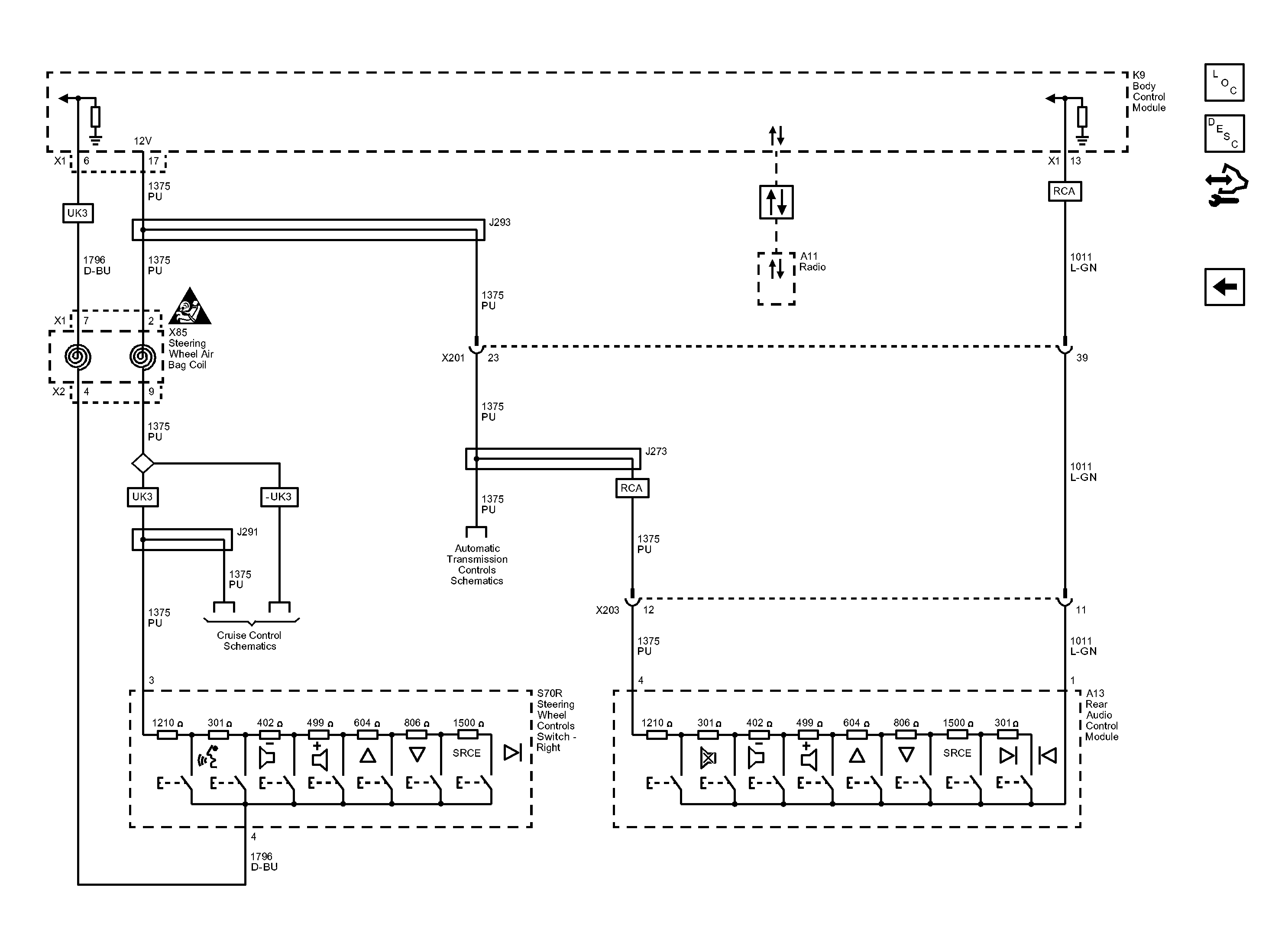

Fig 1: Secondary Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
