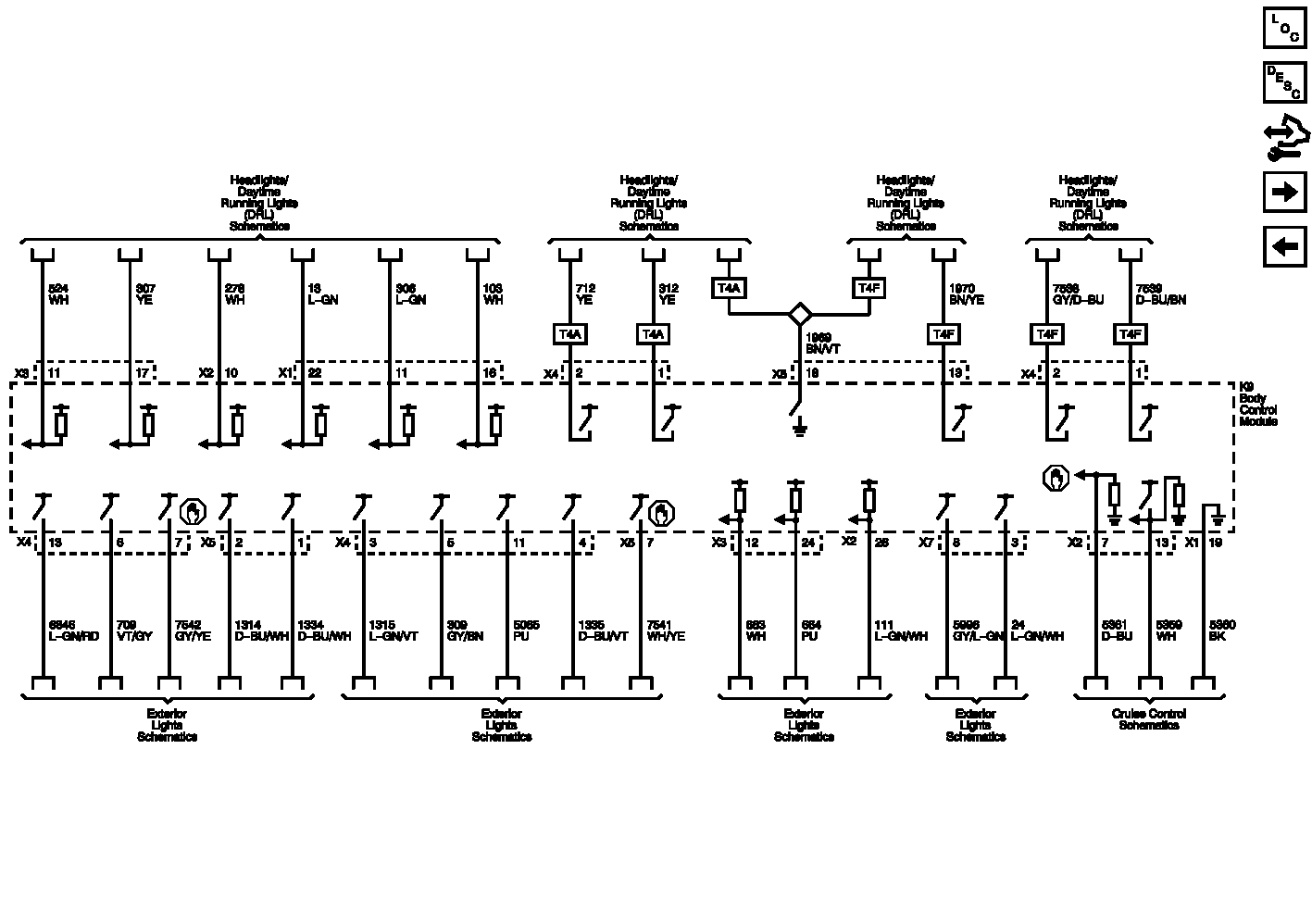

Home › Buick › 2012 › LaCrosse Base, 2.4L Eng VIN R › Repair and Diagnosis › Engine Performance › System › Data Communications System › Wiring Schematics › Body Control System Schematics › Subsystem References (3 of 4)
