Front Engine Compartment Components

Component Name	Callout
B1 A/C Refrigerant Pressure Sensor	1
G10R Cooling Fan Motor - Right	2
G10L Cooling Fan Motor - Left	3
P13 Horn Assembly	4
B118B Windshield Washer Fluid Level Switch	5
G24 Windshield Washer Pump	6

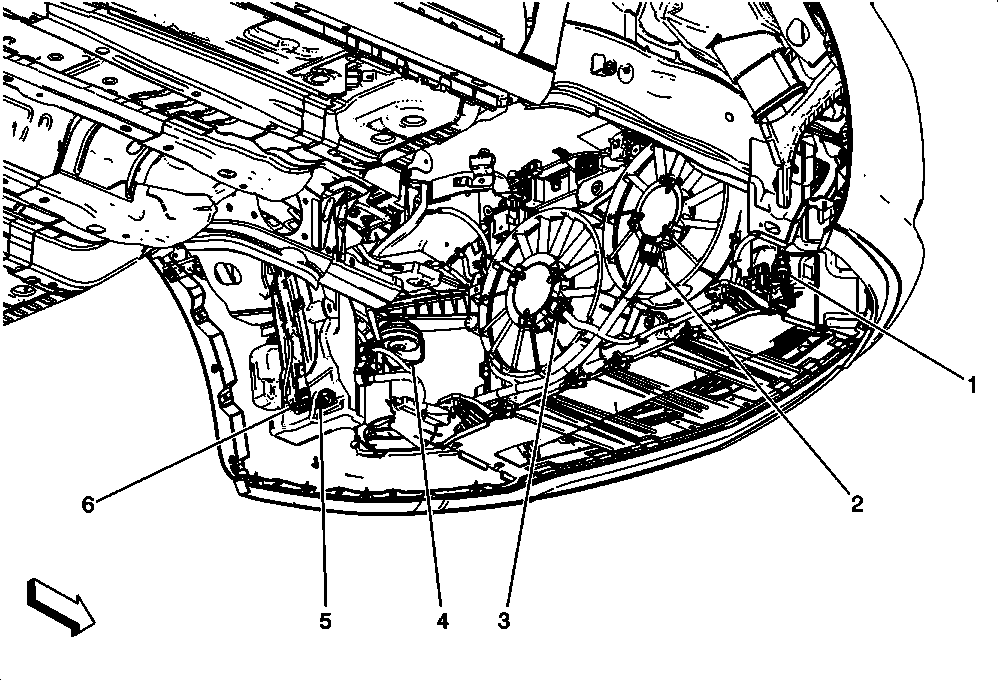

Fig 1: Front Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
