High Speed GMLAN (2 Of 2)

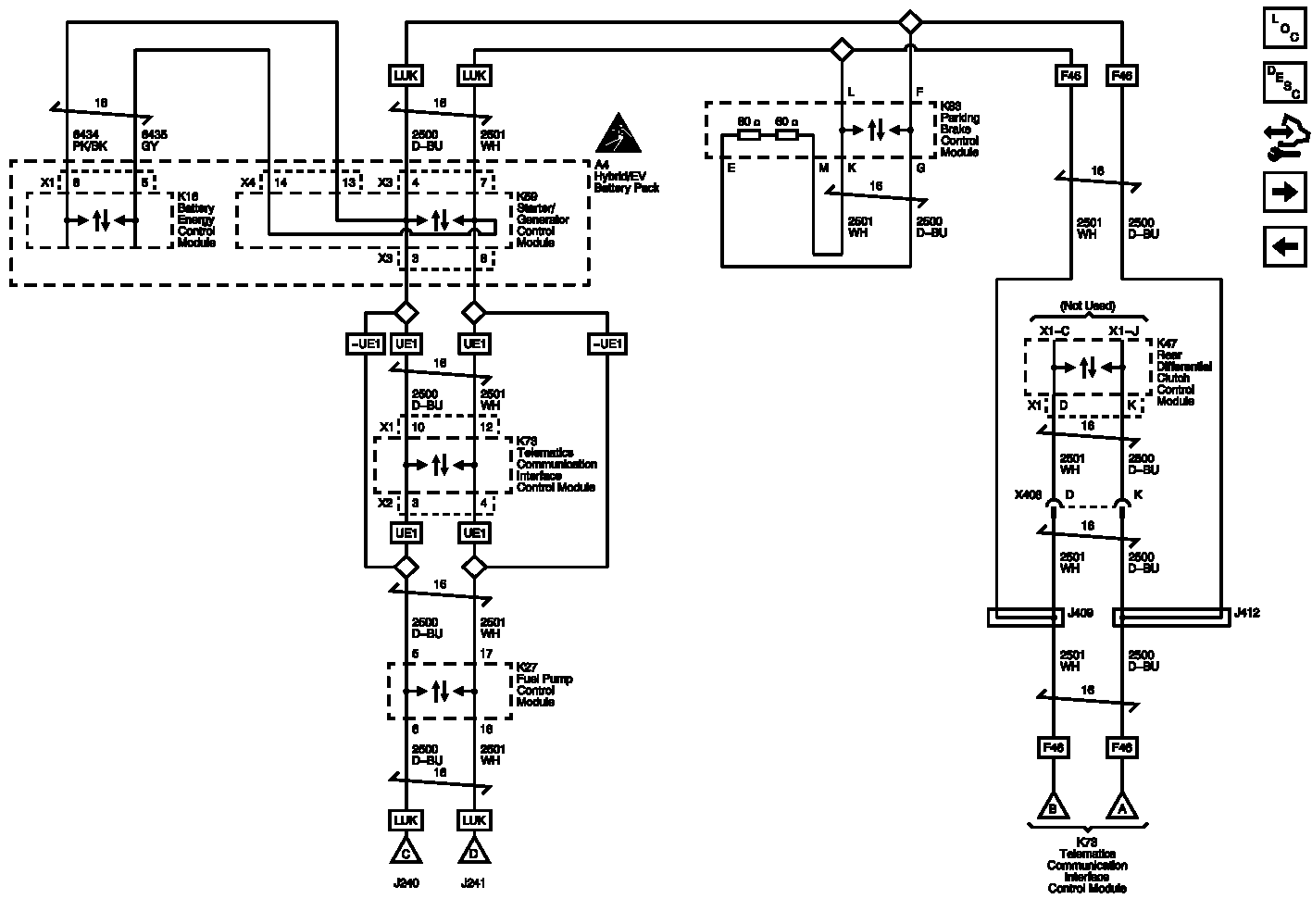

Fig 1: High Speed GMLAN (2 Of 2) Wiring Schematic
GM2577755Courtesy of GENERAL MOTORS COMPANY
