Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

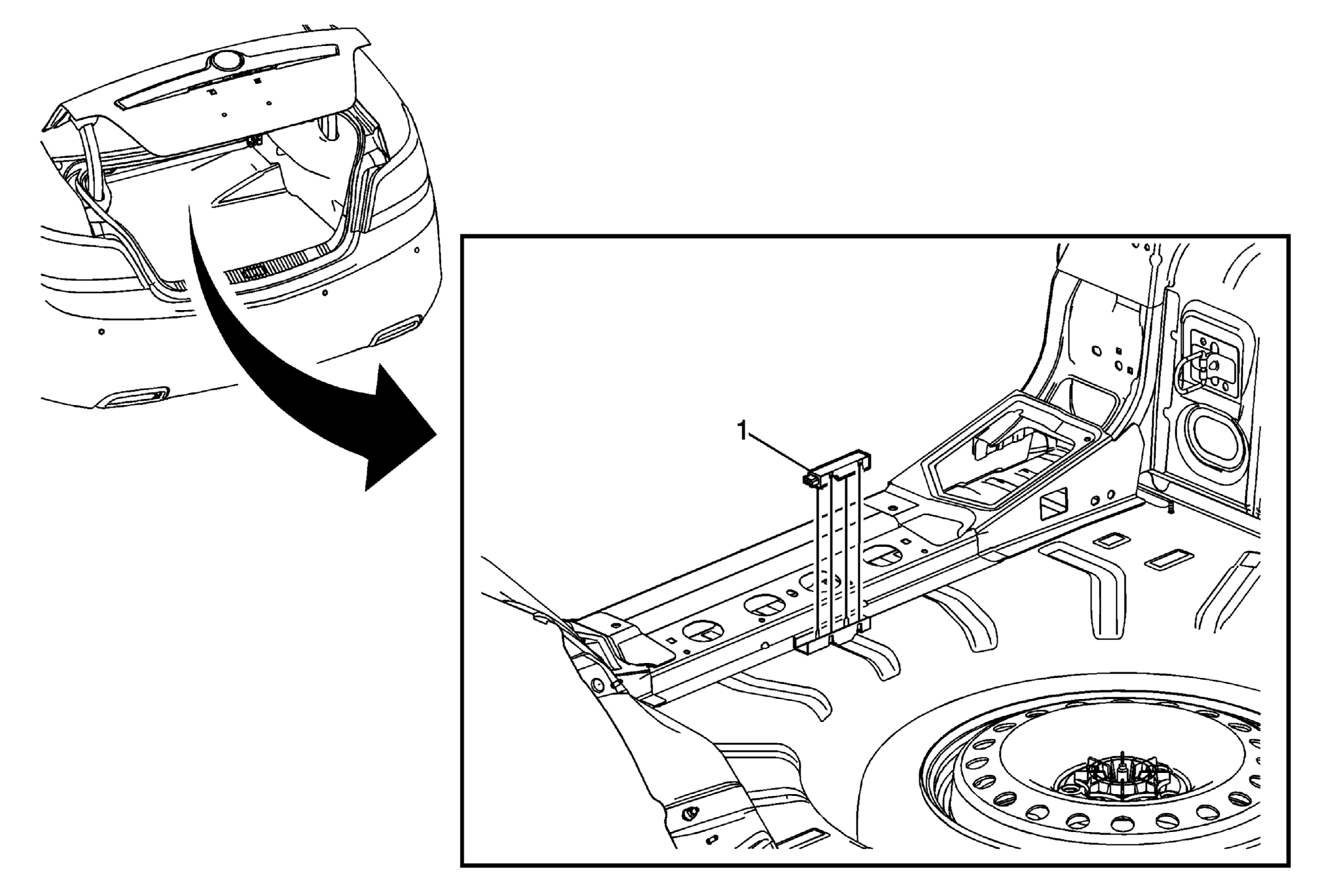

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (without HP6) , Rear Compartment Floor Panel Carpet Replacement (with HP6) .
1	Ignition Lock Key Transmitter Antenna Procedures Disconnect the electrical connector. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.

Callout

Component Name

Ignition Lock Key Transmitter Antenna

Procedures

Disconnect the electrical connector.
Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
