Rear Compartment Lid Latch Replacement

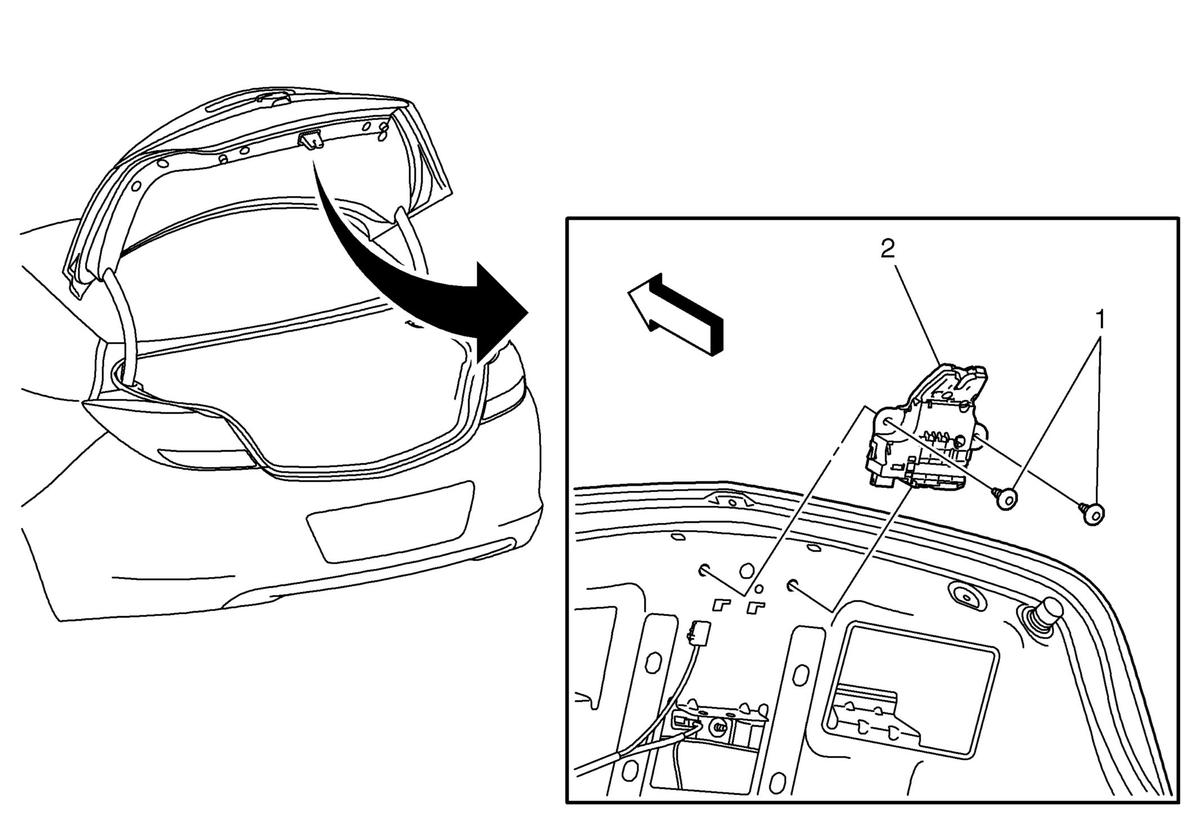

Fig 1: Rear Compartment Lid Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the electrical connector. Push the lid latch to the left side and then forward. Pull out the lid latch. Disconnect the latch cable.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Latch Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Latch

Procedure
