Rear Compartment Lid Release Switch Replacement

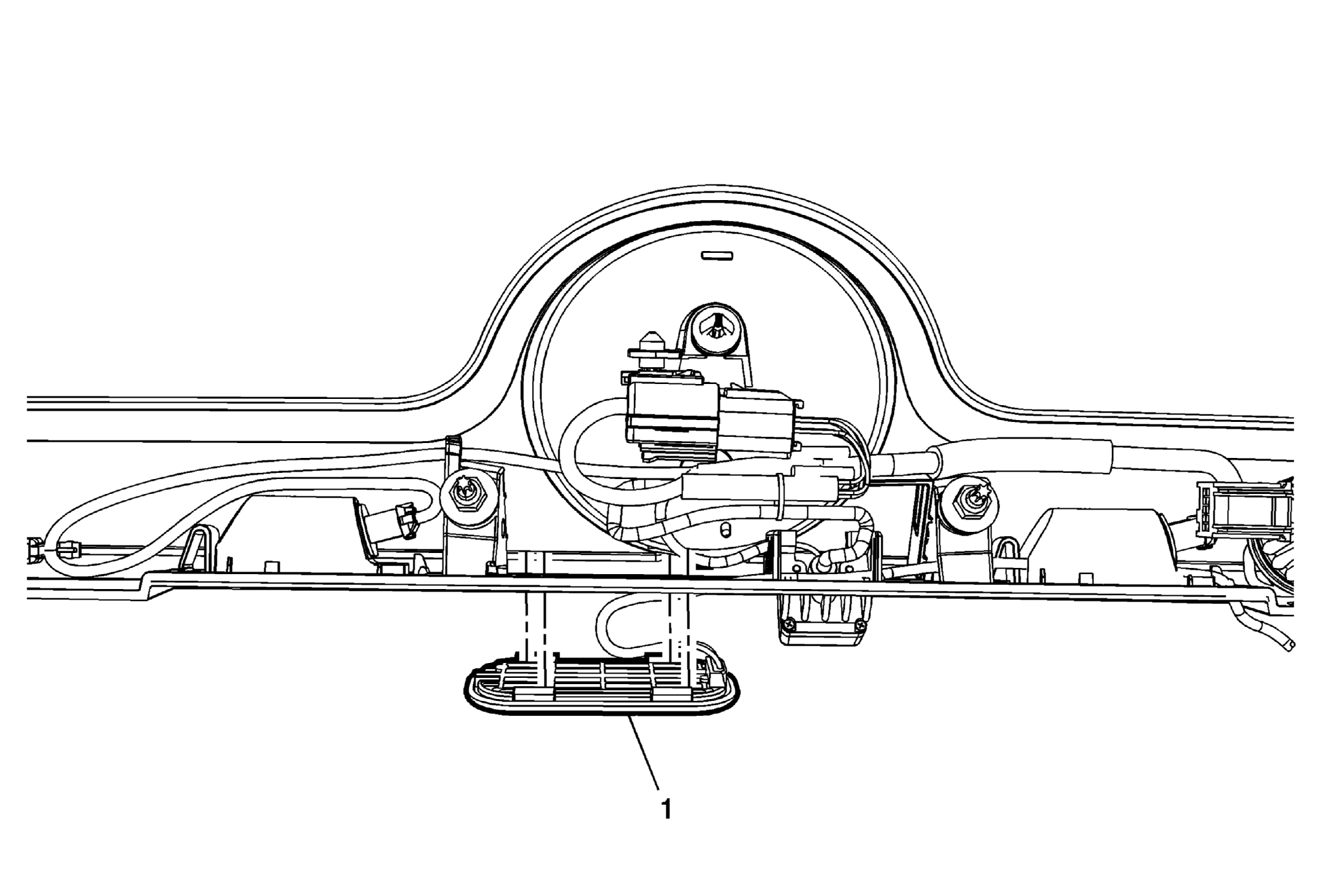

Fig 1: Rear Compartment Lid Release Switch

Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Release Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid outside handle. Refer to Rear Compartment Lid Outside Handle Replacement .
1	Rear Compartment Lid Release Switch Procedure  Use a small flat-bladed tool on the 4 retainers, 2 on each side, to release the rear compartment lid release switch.
