Front Side Door Window Weatherstrip Replacement

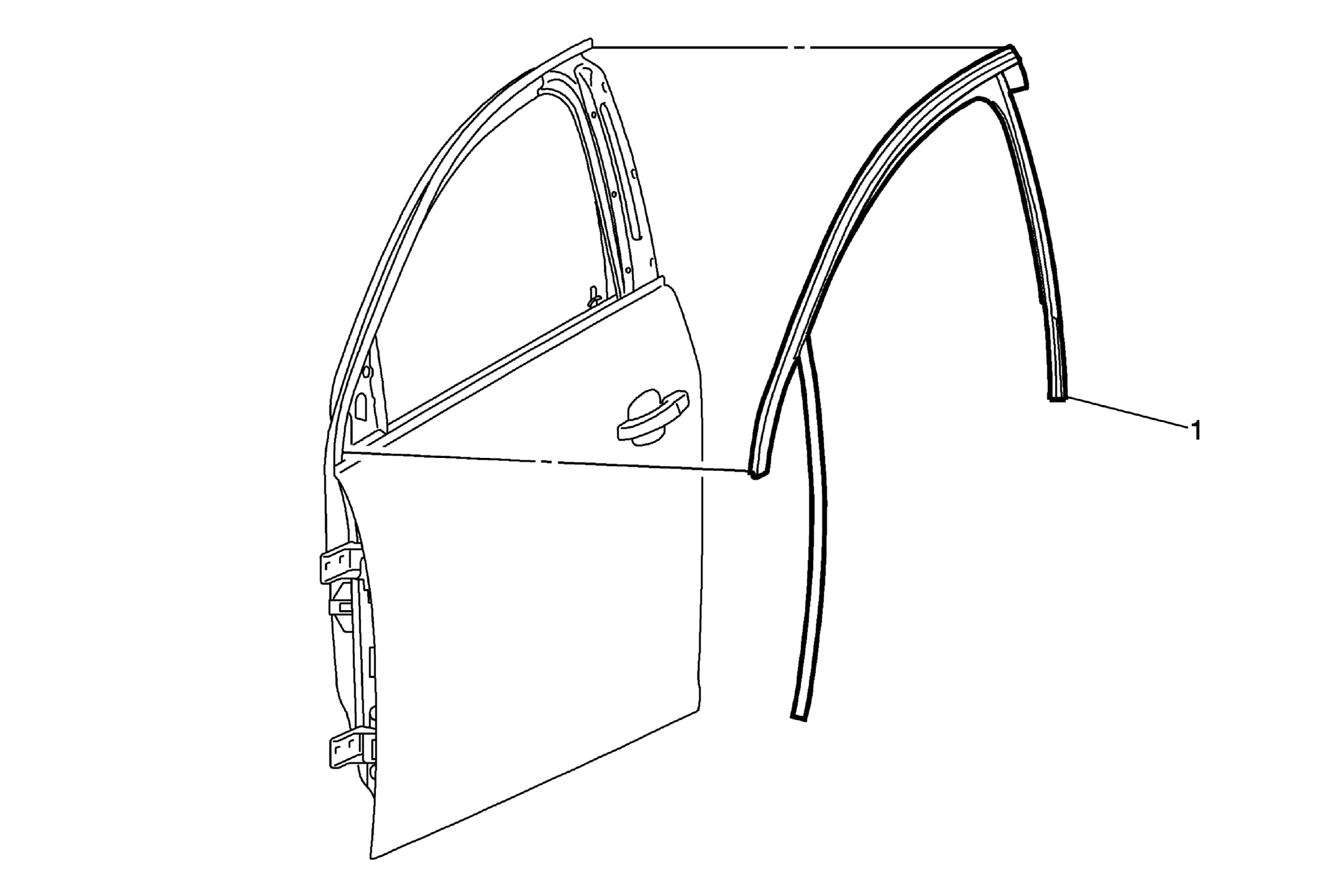

Fig 1: Front Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement Remove the front side door window frame garnish molding. Refer to Front Side Door Window Frame Garnish Molding Replacement Remove the front side door window frame rear cover. Refer to Front Side Door Window Frame Rear Cover Replacement .
1	Front Side Door Window Weatherstrip Retainer
2	Front Side Door Window Weatherstrip Procedure Pull the front side door window weatherstrip from the window frame to remove.

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement
Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement
Remove the front side door window frame garnish molding. Refer to Front Side Door Window Frame Garnish Molding Replacement
Remove the front side door window frame rear cover. Refer to Front Side Door Window Frame Rear Cover Replacement .

Front Side Door Window Weatherstrip Retainer

Front Side Door Window Weatherstrip
Procedure
Pull the front side door window weatherstrip from the window frame to remove.
