Rear Side Door Window Switch Replacement

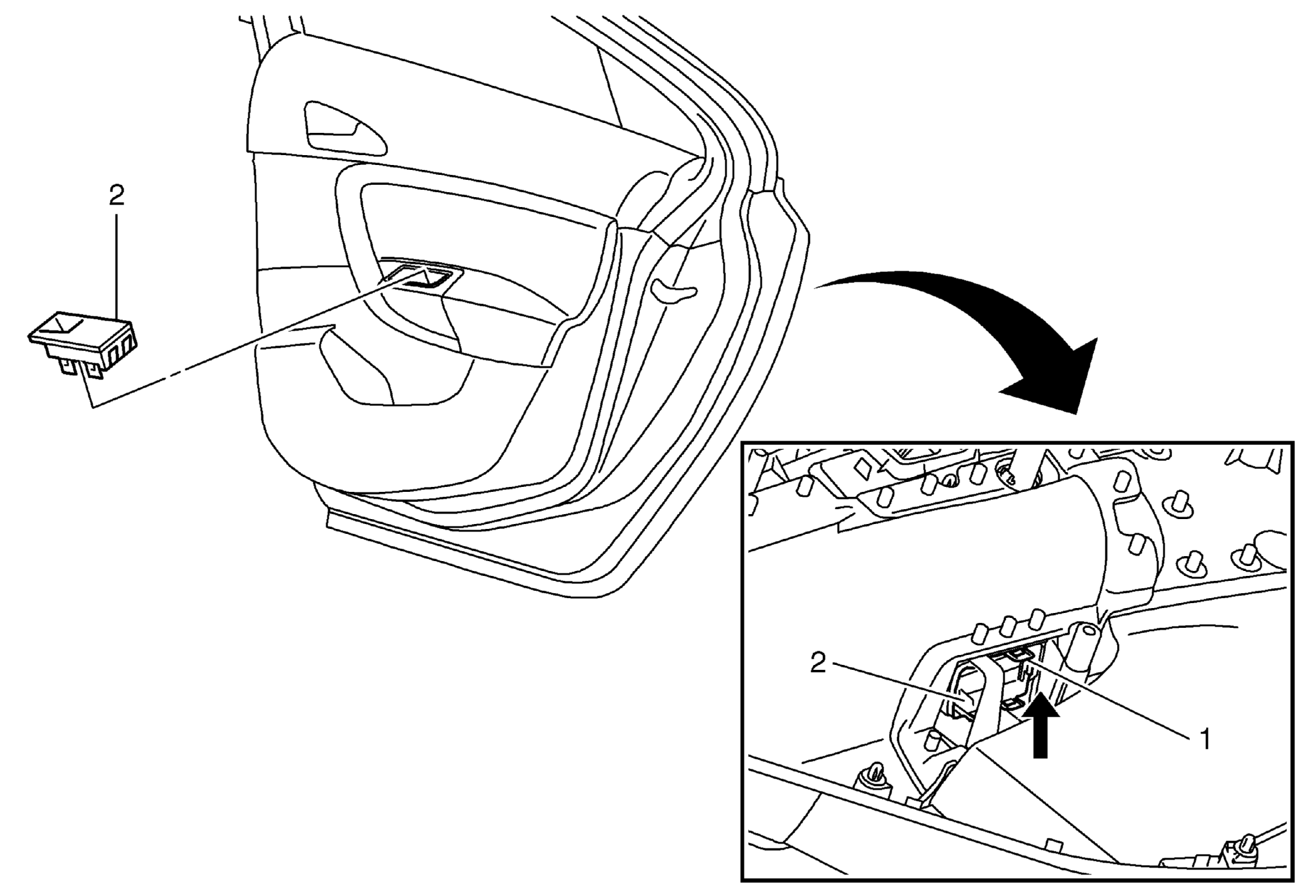

Fig 1: Rear Side Door Window Switch
GM2019706Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Rear Side Door Switch Retainer
TIP:  Use a small flat-bladed tool to release the retainer from the rear side door switch.
2 Rear Side Door Switch
Procedure
Disconnect the electrical connector.
