Outside Rearview Mirror Replacement
Outside Rearview Mirror Replacement

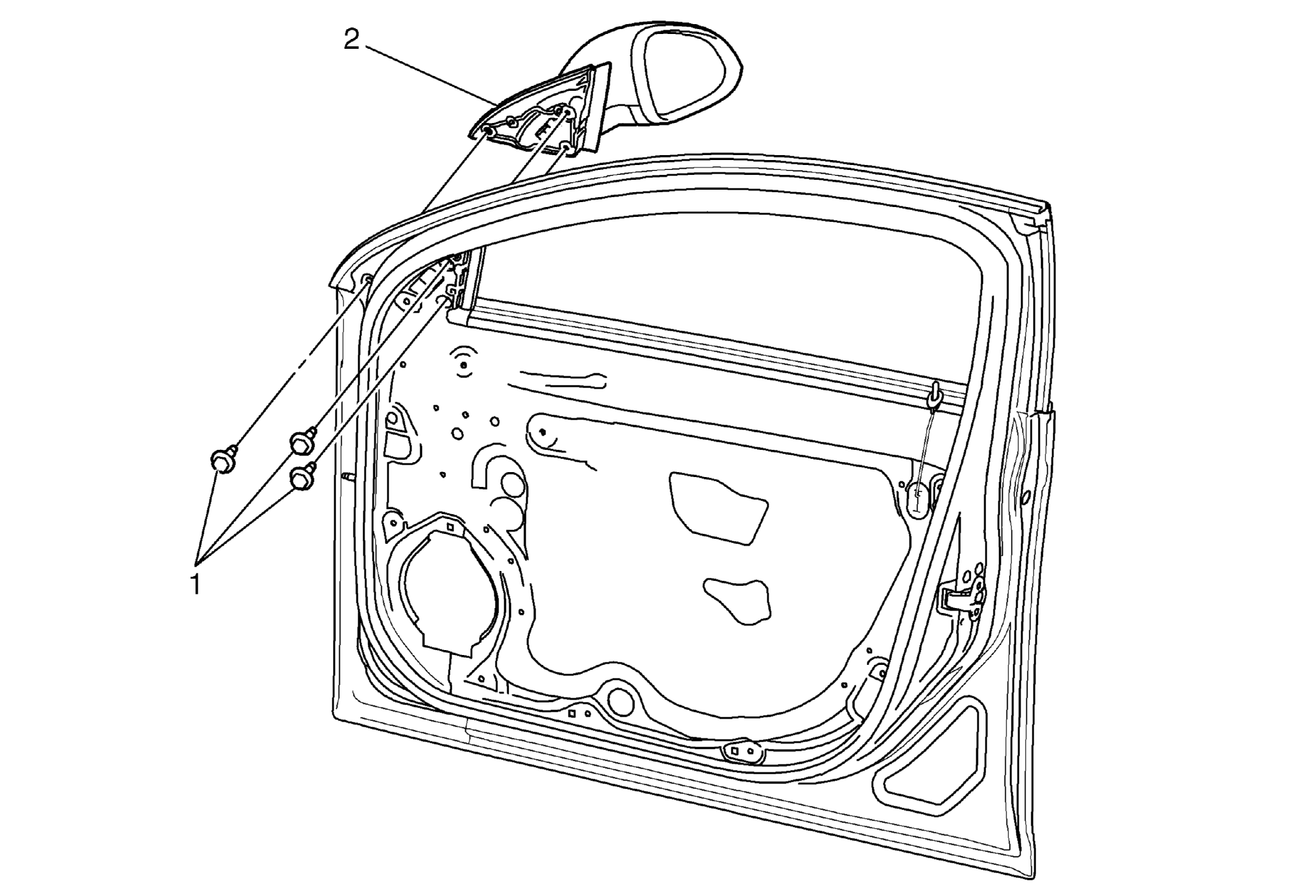

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Outside Rearview Mirror Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the mirror electrical connector. Tighten 9 N.m (80 lb in) |
| 2 | Outside Rearview Mirror Assembly TIP: The mirror assembly must be ordered and assembled prior to being installed to the vehicle. |
