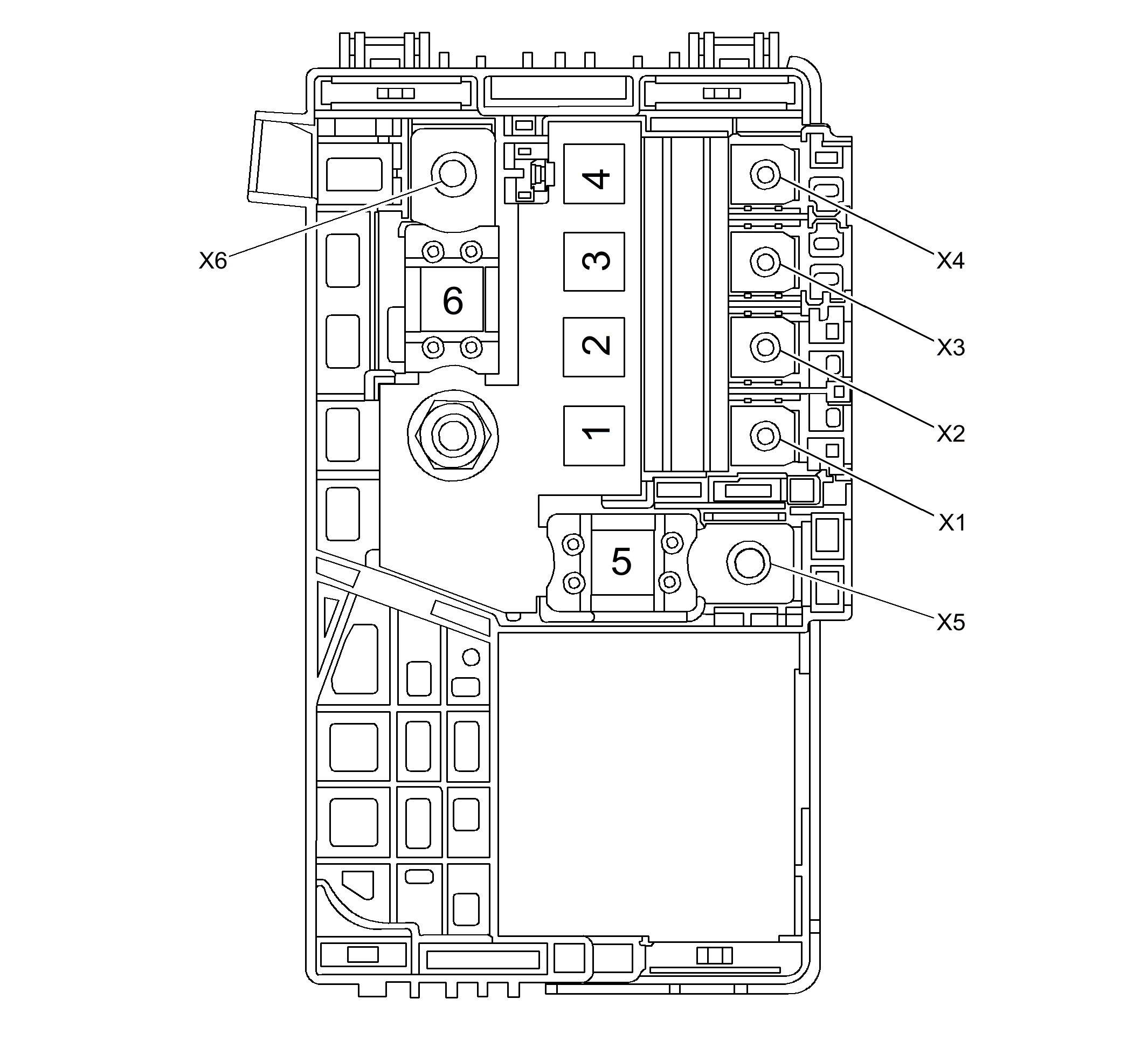

X50D Fuse Block - Battery Top View
X50D Fuse Block - Battery Usage
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1UB Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 2 | - | F2UB Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 3 | - | F3UB Fuse | 100A | Not Used |
| 4 | - | F4UB Fuse | 100A | Not Used |
| 5 | - | F5UB Fuse | 250A | X50A Fuse Block - Underhood |
| 6 | - | F6UB Fuse | 300A | G13 Generator (LEA), M64 Starter Motor (LEA) |
| 250A | G13 Generator (LHU), M64 Starter Motor (LHU) |
