Left Rear Door Components

GM2504373Courtesy of

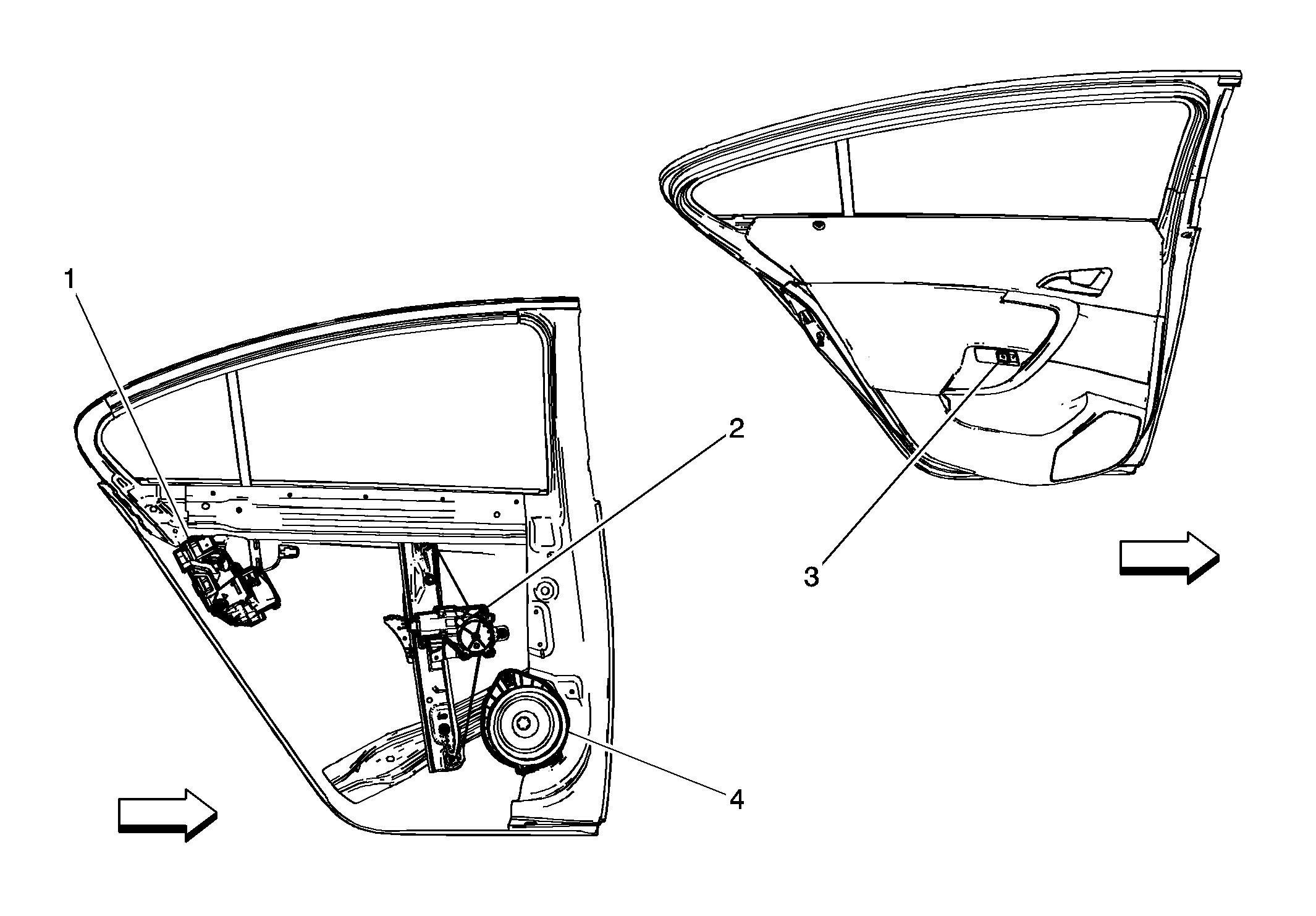

Left Rear Door Components

Component Name Callout
A23LR Door Latch Assembly- Left Rear 1
M74LR Window Motor- Left Rear 2
S79LR Window Switch- Left Rear 3
P19AL Speaker- Left Rear Door 4
