Automatic Transmission Components (MH8)
 Courtesy of
|

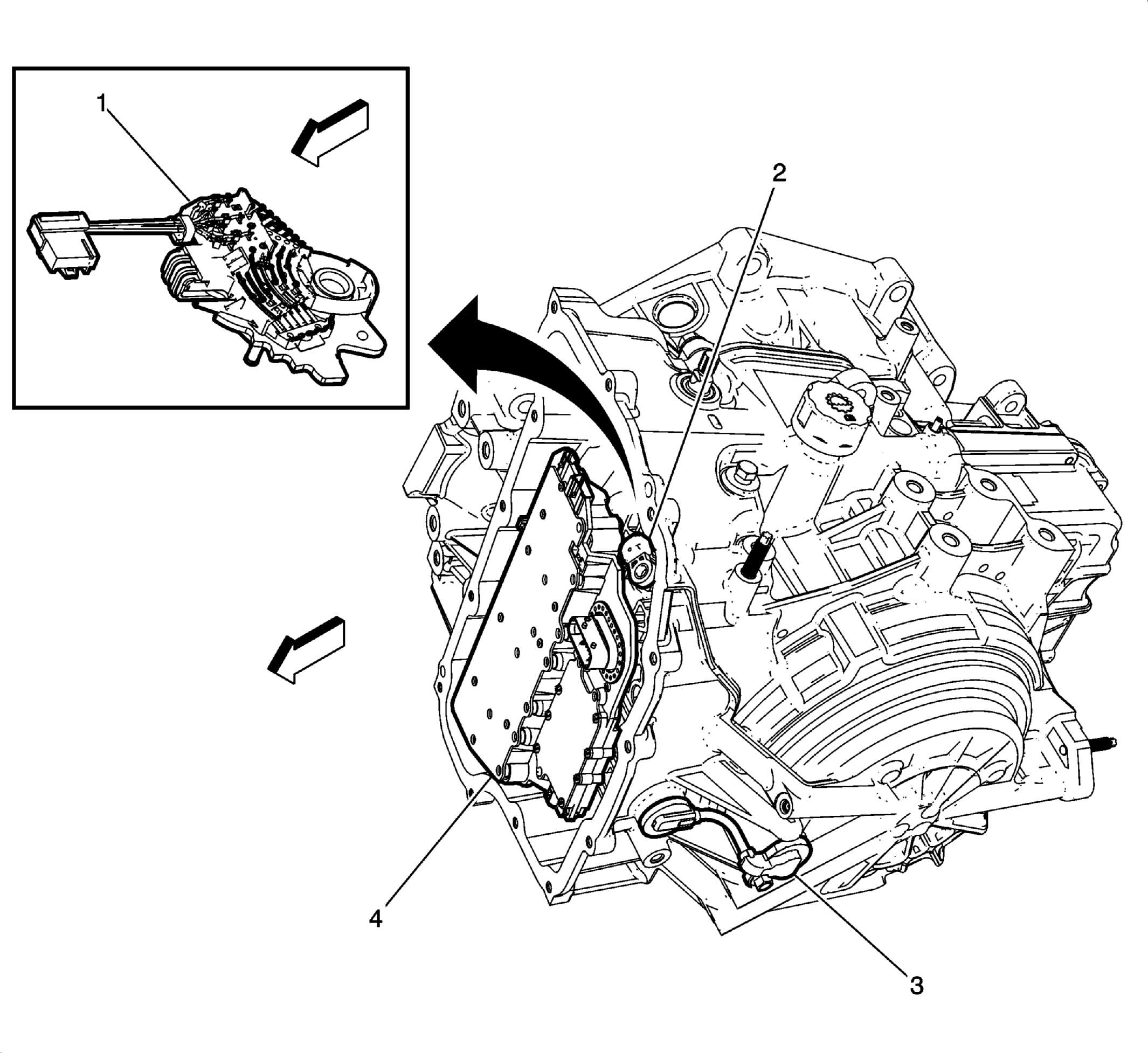

Automatic Transmission Components (MH8)
| Component Name |
Callout |
| B15 Transmission Internal Mode Switch |
1 |
| B14A Transmission Output Shaft Speed Sensor |
2 |
| B14C Transmission Input Shaft Speed Sensor |
3 |
| Q8 Control Solenoid Valve Assembly |
4 |
