Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY Instrument Cluster Replacement

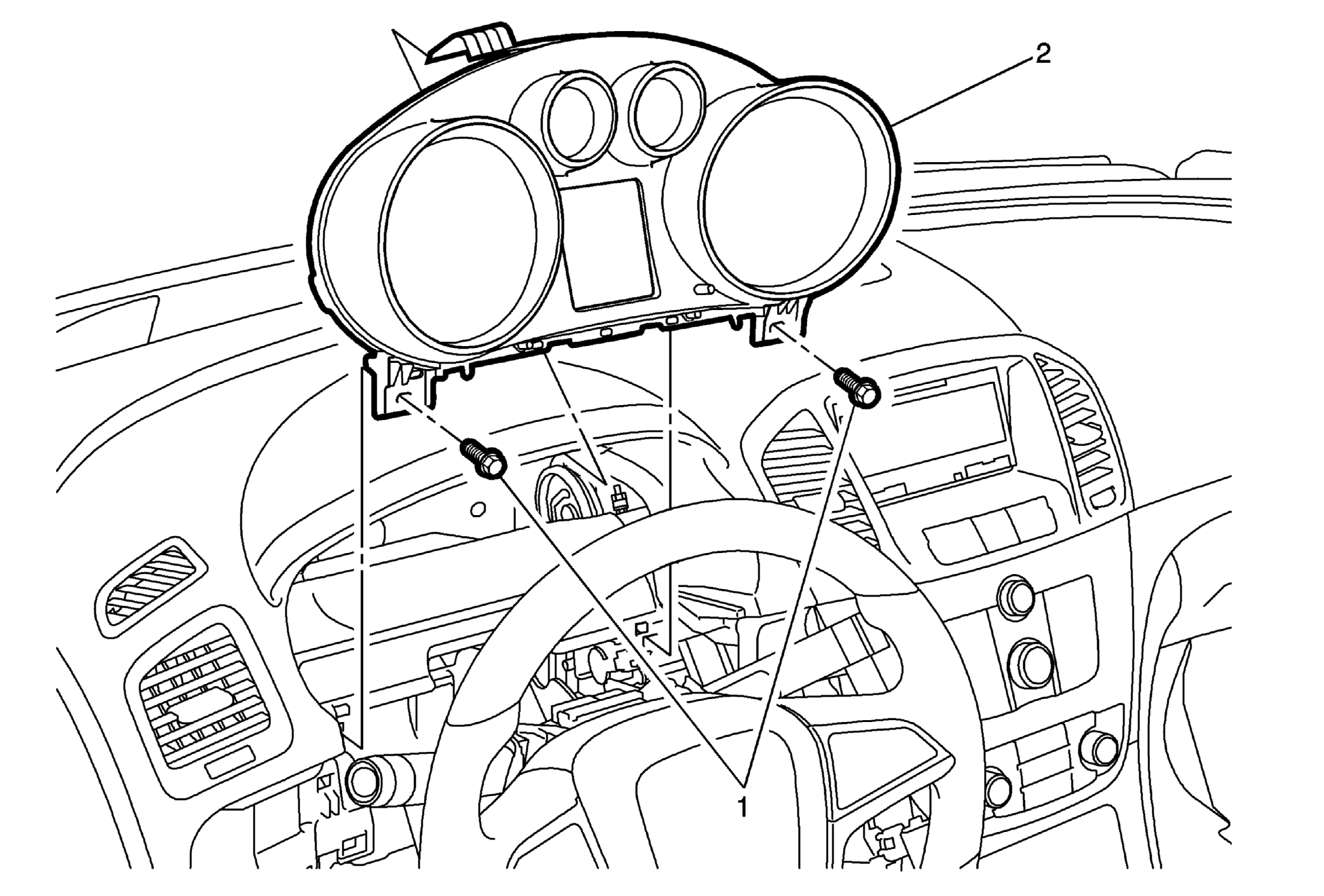

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the left side instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side
.
- Remove the steering column upper trim cover from the instrument panel. Refer to Steering Column Trim Cover Replacement
.
|
| 1 |
Instrument Cluster Assembly Fastener (Qty: 2)
Tighten
2.5 N.m (22 lb in) |
| 2 |
Instrument Cluster Assembly Procedure
- Disconnect the electrical connector.
- Remove the instrument cluster.
- For programming and set up information refer to Control Module References
.
|
