Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

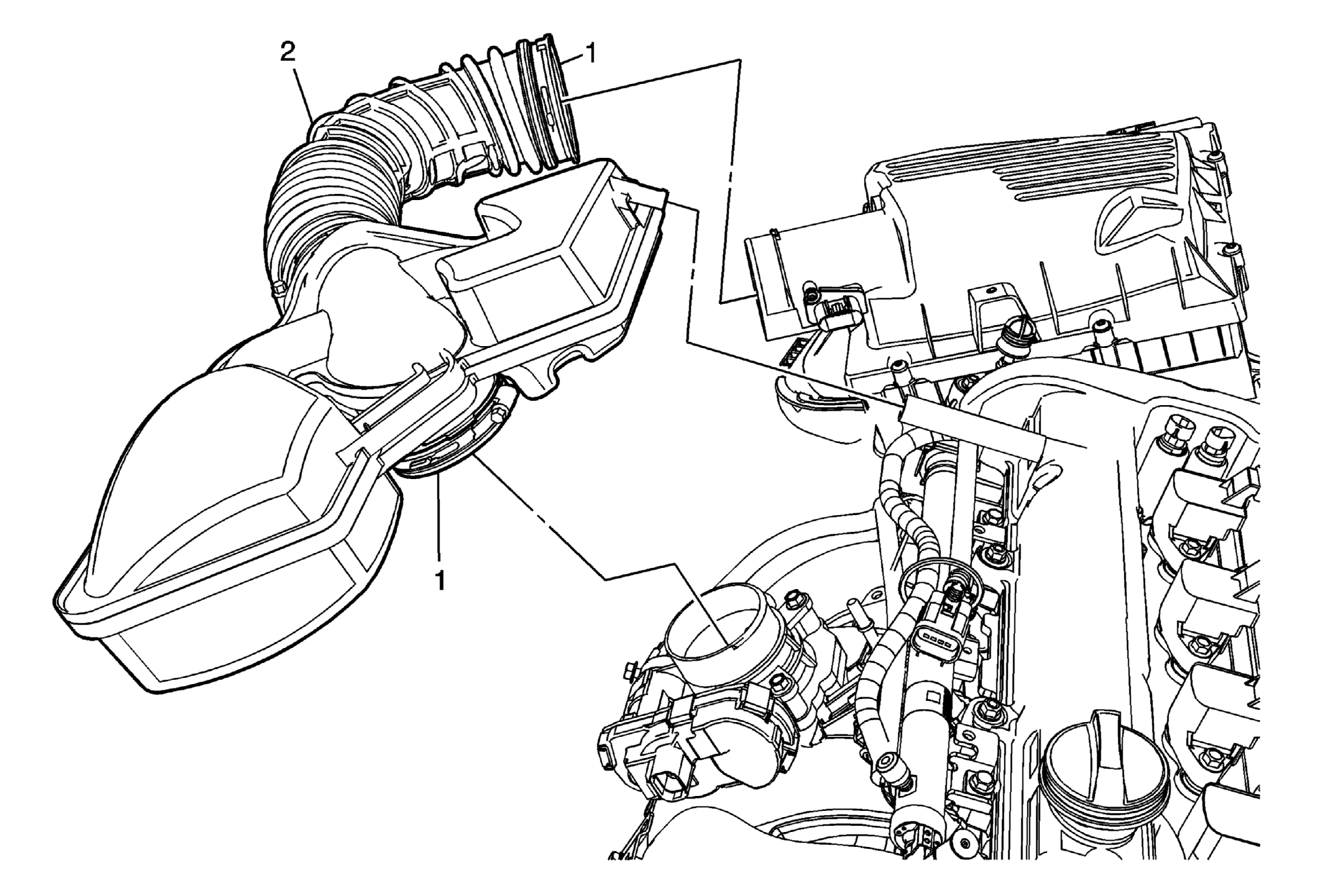

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Outlet Duct with Resonator |
