Crankshaft Position Sensor Replacement

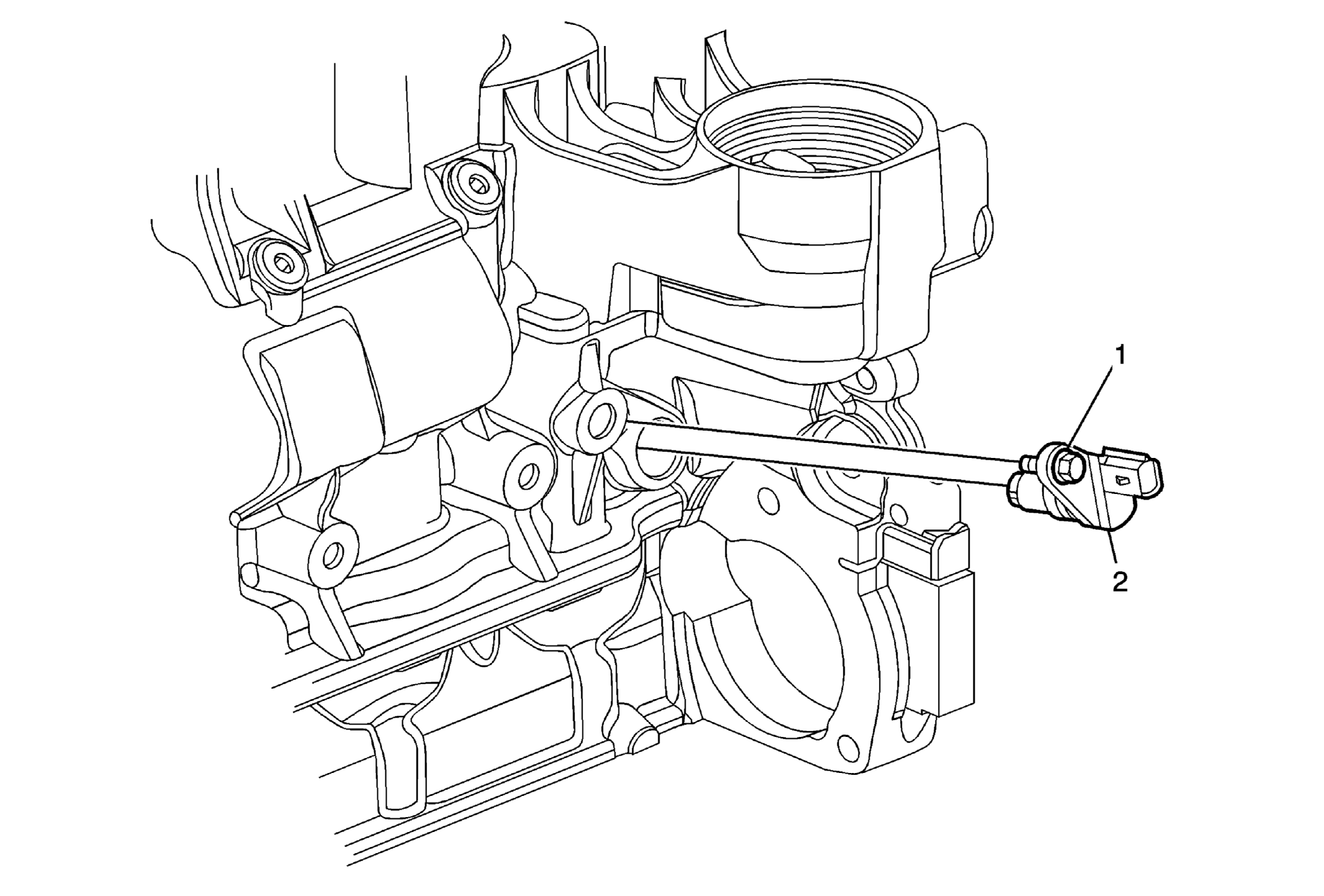

Fig 1: Crankshaft Position Sensor (LE5, LE9 or LAF)

Courtesy of GENERAL MOTORS COMPANY

Crankshaft Position Sensor Replacement

Callout	Component Name
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure  Disconnect the electrical connector.
