Fuel Tank Pressure Sensor Replacement (NU6)

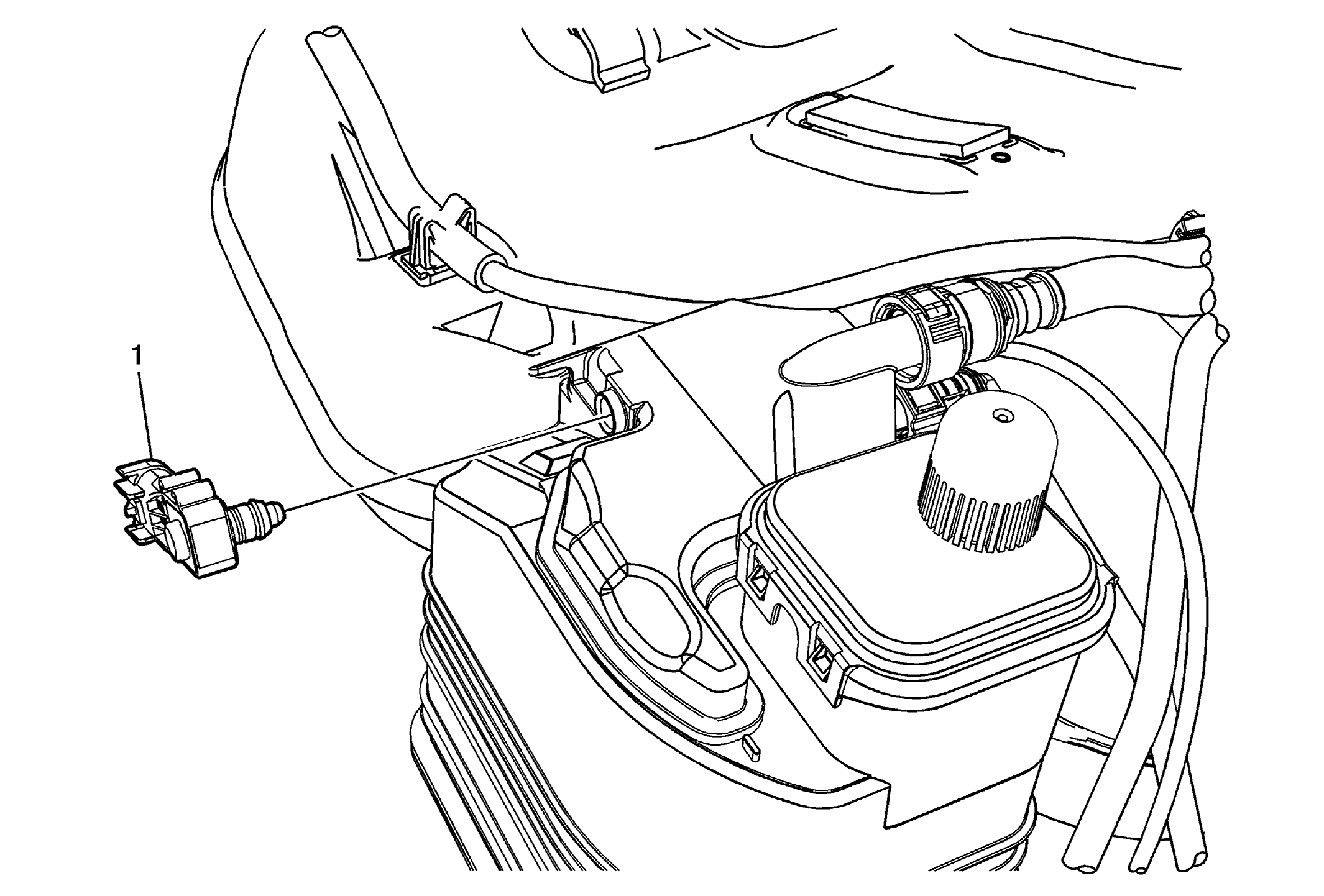

Fig 1: Fuel Tank Pressure Sensor (NT7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .

Fuel Tank Pressure Sensor

Procedure
