Fuel Tank Vent Pipe Replacement

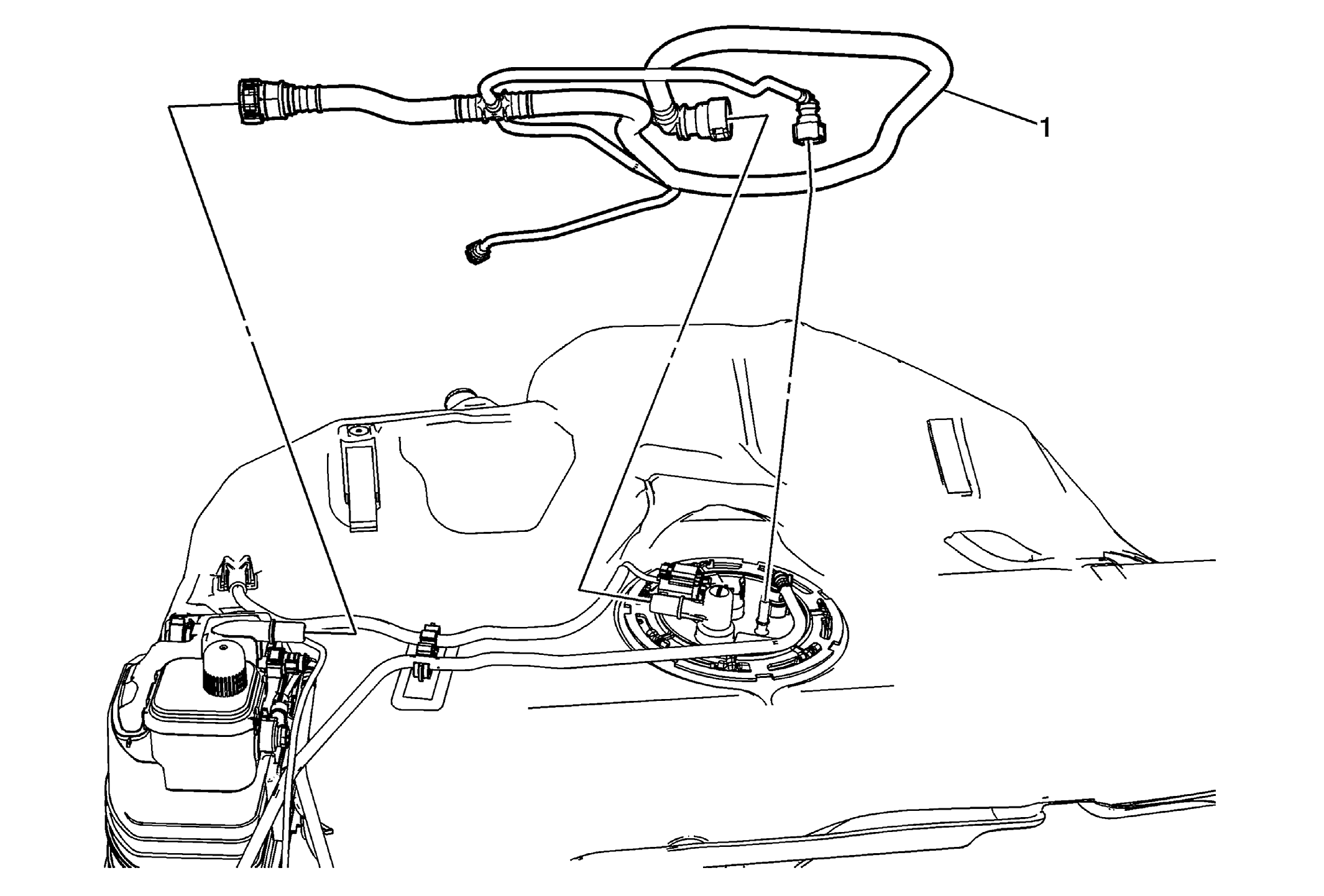

Fig 1: Evaporative Emission Canister Vent Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Fuel Tank Vent Pipe Replacement

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Evaporative Emission Canister Vent Front Pipe Procedure  Disconnect the evaporative emission quick connects. Refer to Plastic Collar Quick Connect Fitting Service .
