Secondary Air Injection Pump Inlet Hose Replacement
Secondary Air Injection Pump Inlet Hose Replacement

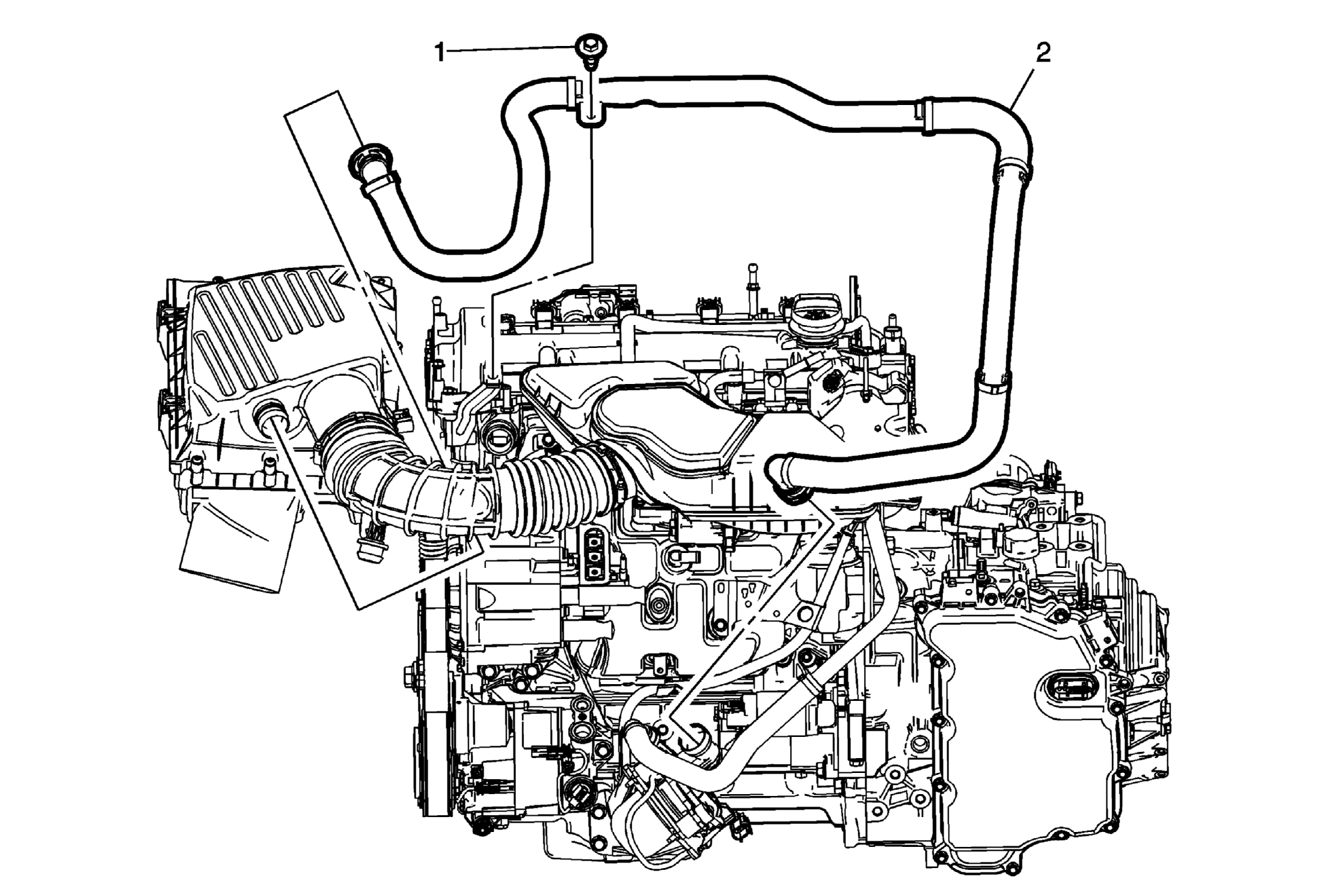

| Callout | Component Name |
|---|---|
| 1 | Secondary Air Injection Inlet Pump Hose Fastener
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m(16 lb ft). |
| 2 | Secondary Air Injection Inlet Pump Hose Procedure Disconnect the quick connect fittings by squeezing both sides. |
