Secondary Air Injection Pump Replacement

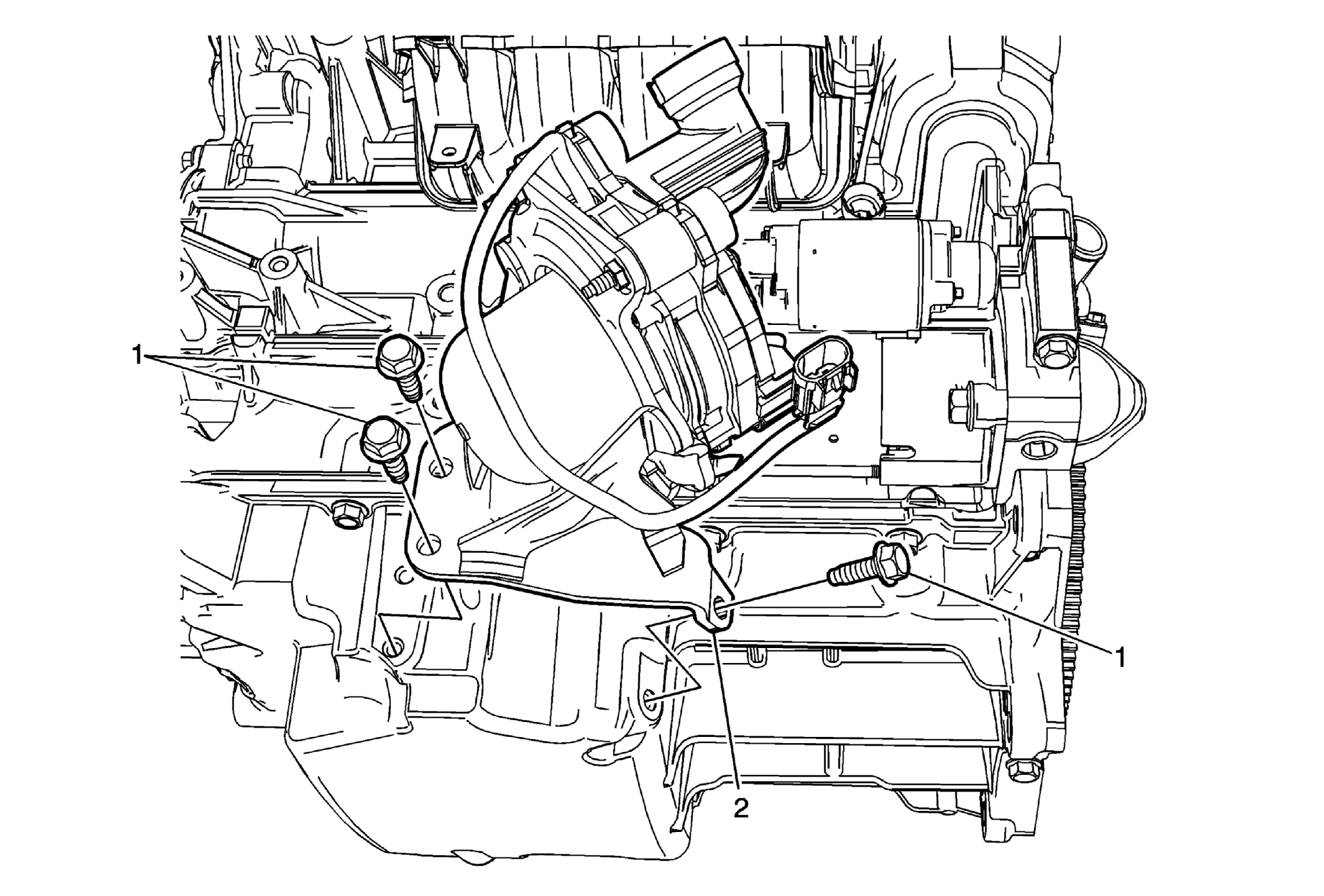

Fig 1: Secondary Air Injection Pump Replacement & Bolts

Courtesy of GENERAL MOTORS COMPANY

Secondary Air Injection Pump Replacement

Callout	Component Name
Preliminary Procedure  Disconnect the secondary injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement
1	Secondary Air Injection Pump Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  30 N.m(22 lb ft).
2	Secondary Air Injection Pump
