Fuel Rail Assembly

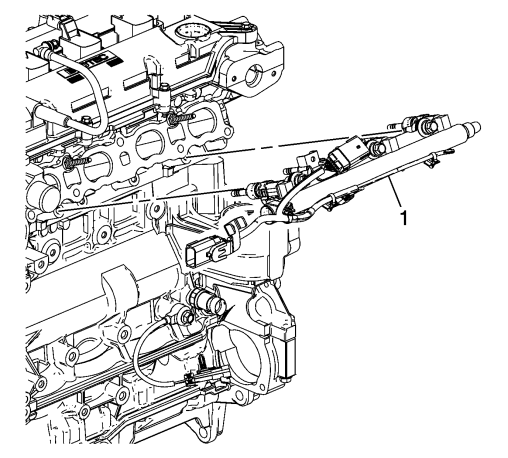

Fig 1: Fuel Rail & Injectors

Courtesy of GENERAL MOTORS COMPANY

The fuel rail assembly (1) attaches to the cylinder head. The fuel rail distributes high pressure fuel to the fuel injectors. The fuel rail assembly consists of the following components:

• The direct fuel injectors
• The fuel rail pressure sensor
