Generator Replacement (L4)

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

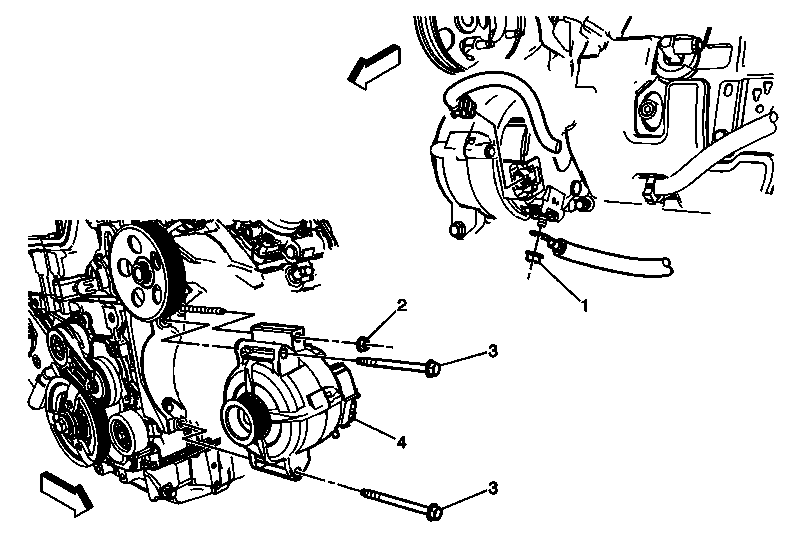

Fig 1: Generator (L4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement . Disconnect the engine harness generator connector.
1	Generator Battery Positive Nut CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
2	Generator Nut (Qty: 1) Tighten: 22 N.m (16 lb ft)
3	Generator Bolt (Qty: 2) Tighten: 22 N.m (16 lb ft)
4	Generator
