Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

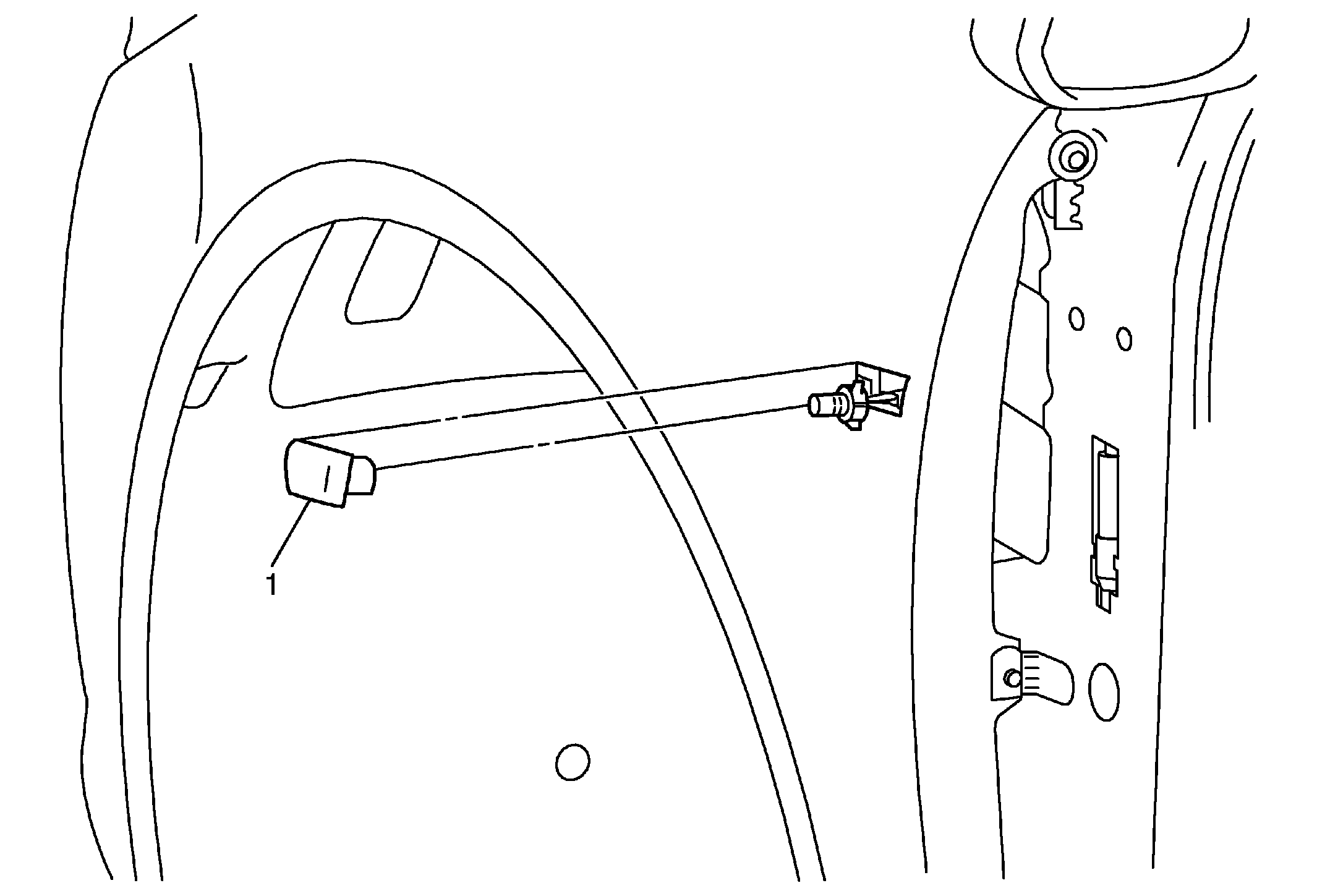

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Rear Liner Replacement . Disconnect the front side turn signal lamp electrical connector. Squeeze the lamp housing locking retainer and push outward in order to remove the front side turn signal lamp from the fender panel.
1	Front Side Turn Signal Lamp Tip: Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Rear Liner Replacement .
Disconnect the front side turn signal lamp electrical connector.
Squeeze the lamp housing locking retainer and push outward in order to remove the front side turn signal lamp from the fender panel.

Front Side Turn Signal Lamp
Tip: Replace the bulb, as needed.
