Headlamp Switch Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel headlamp switch molding. Refer to Headlamp Switch Molding Replacement . |
|

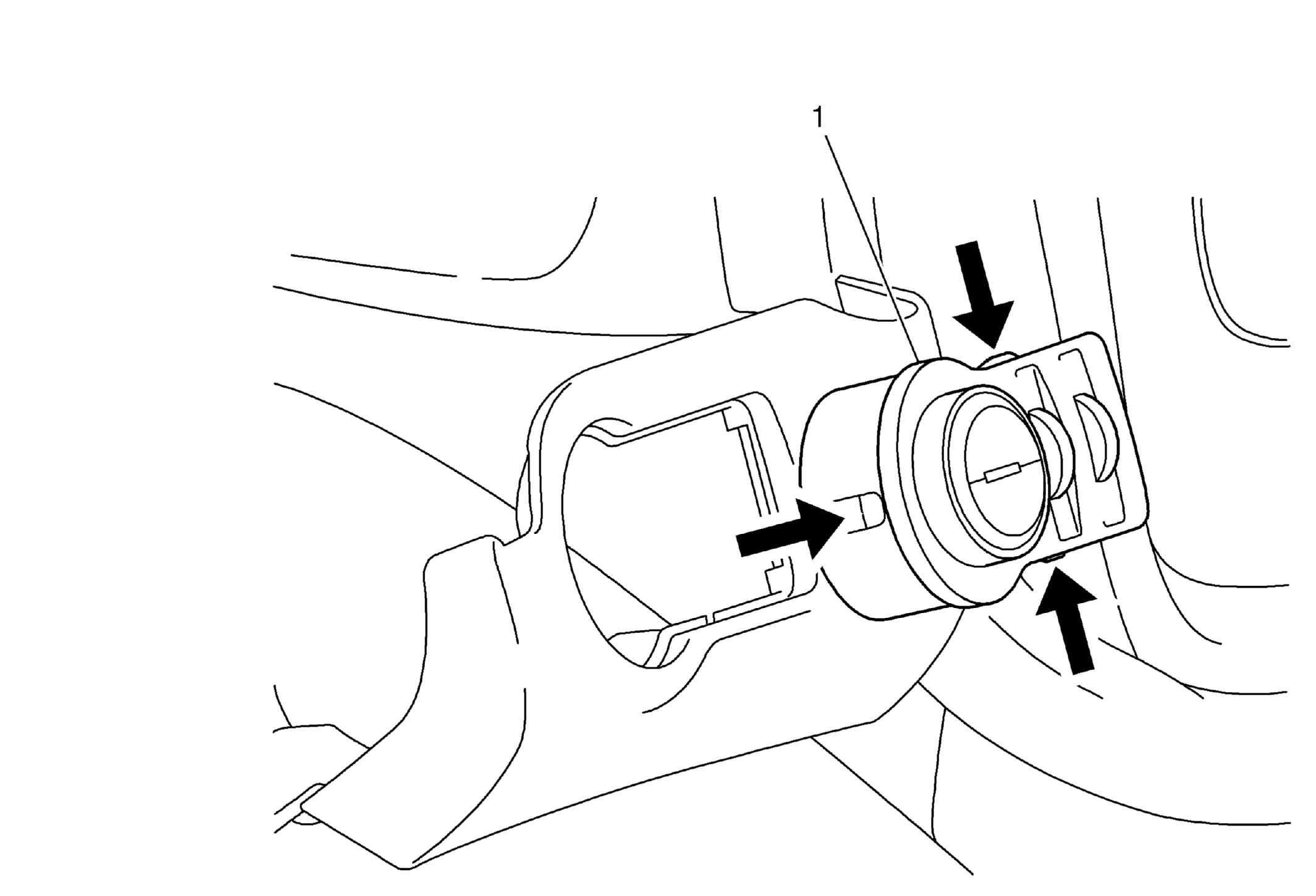

| 1 | Headlamp Switch Procedure: Disconnect the electrical connector. Tip: Use a flat-bladed plastic trim tool in order to release the retaining clips. |
