Rear Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

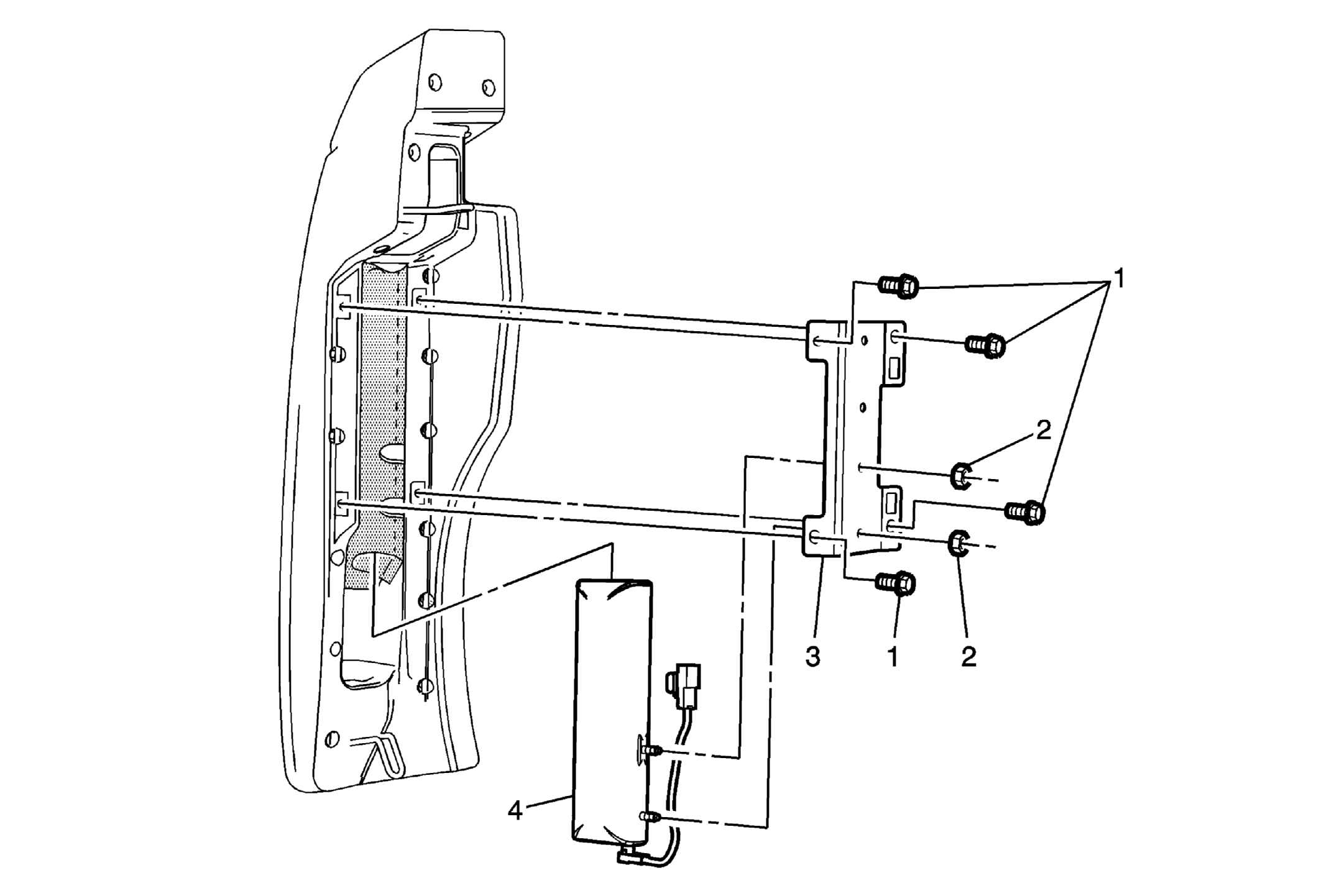

Fig 1: Rear Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedure Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Cushion Bolster Replacement .
1	Rear Seat Side Inflatable Restraint Module Bracket Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 3.5 N.m (31 lb in)
2	Rear Seat Side Inflatable Restraint Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3.5 N.m (31 lb in)
3	Rear Seat Side Inflatable Restraint Module Bracket
4	Rear Seat Side Inflatable Restraint Module Procedure Remove the connector position assurance (CPA) from the module electrical connector. Disconnect the electrical connector. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
