Removal Procedure

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to SIR Inflator Module Handling and Storage Warning in the Preface section.

WARNING: Refer to SIR Warning in the Preface section.

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Fig 1: Special Air Bag Removal Tool

Courtesy of GENERAL MOTORS CORP.

NOTE: Produce a special tool for airbag removal, the tool can be reused.

Use a screwdriver or equivalent tool with total length of (b) 180 mm (7.1 in). Bend the tip (a) at 30 mm (1.2 in) by approx. 30 degrees.
Lower the steering column and move to the maximum rear end position.
Turn the steering wheel to a 3 o'clock and 9 o'clock position so that the holes are at the top.

Fig 2: Inserting Special Tool Through Access Openings

Courtesy of GENERAL MOTORS CORP.

Insert the screw driver (1) through both access openings and push the spring fastener (2) inward to release the steering wheel inflator from the steering wheel.

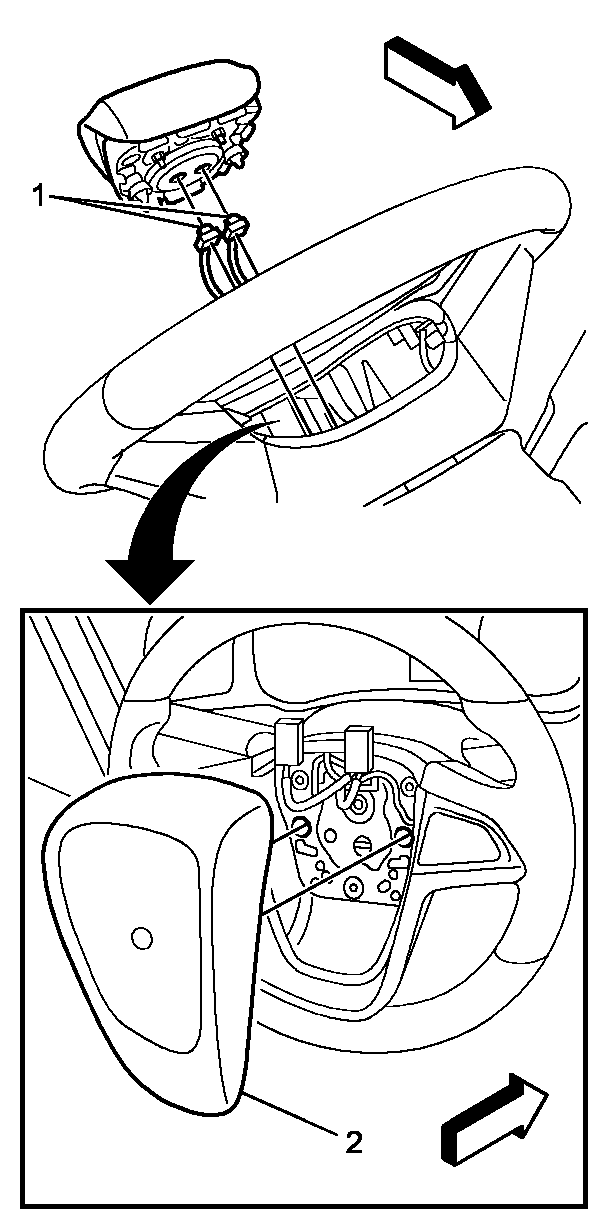

Fig 3: Electrical Connectors And Steering Wheel Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors (1).
Remove the steering wheel inflatable restraint module (2).
