Rear Compartment Lid Hinge Spring Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
WARNING:
Refer to Eye Protection Warning
. Preliminary Procedure: Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement
. |
|

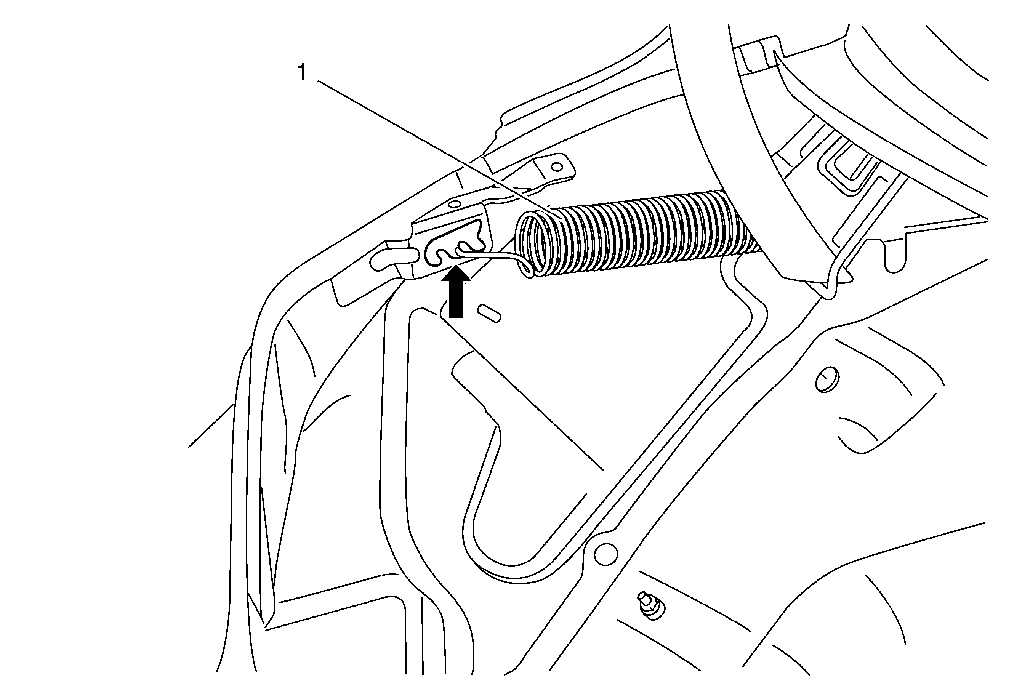

| 1 | Rear Compartment Lid Spring Procedure: Pull the rear compartment lid spring backwards and unhook the rear compartment lid spring from the rear compartment lid hinge spring bracket. |
