Installation Procedure

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

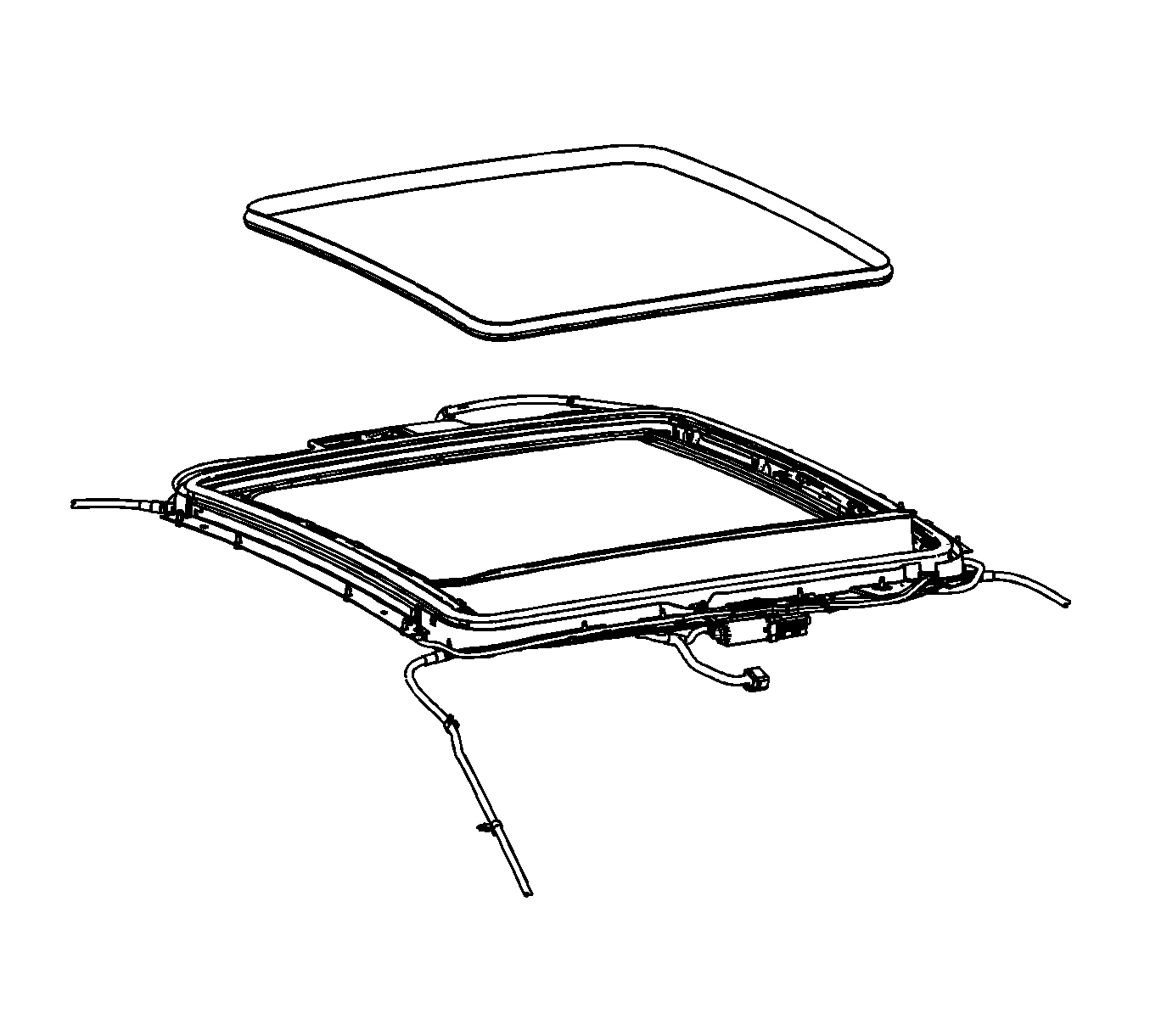

Fig 1: Sunroof Housing Track And Seal

GM2033865

Courtesy of GENERAL MOTORS CORP.

Install the seal to the sunroof housing track.
Install the rear sunroof window. Refer to Sunroof Window Replacement - Rear .
Install the front sunroof window. Refer to Sunroof Window Replacement - Front .
