Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

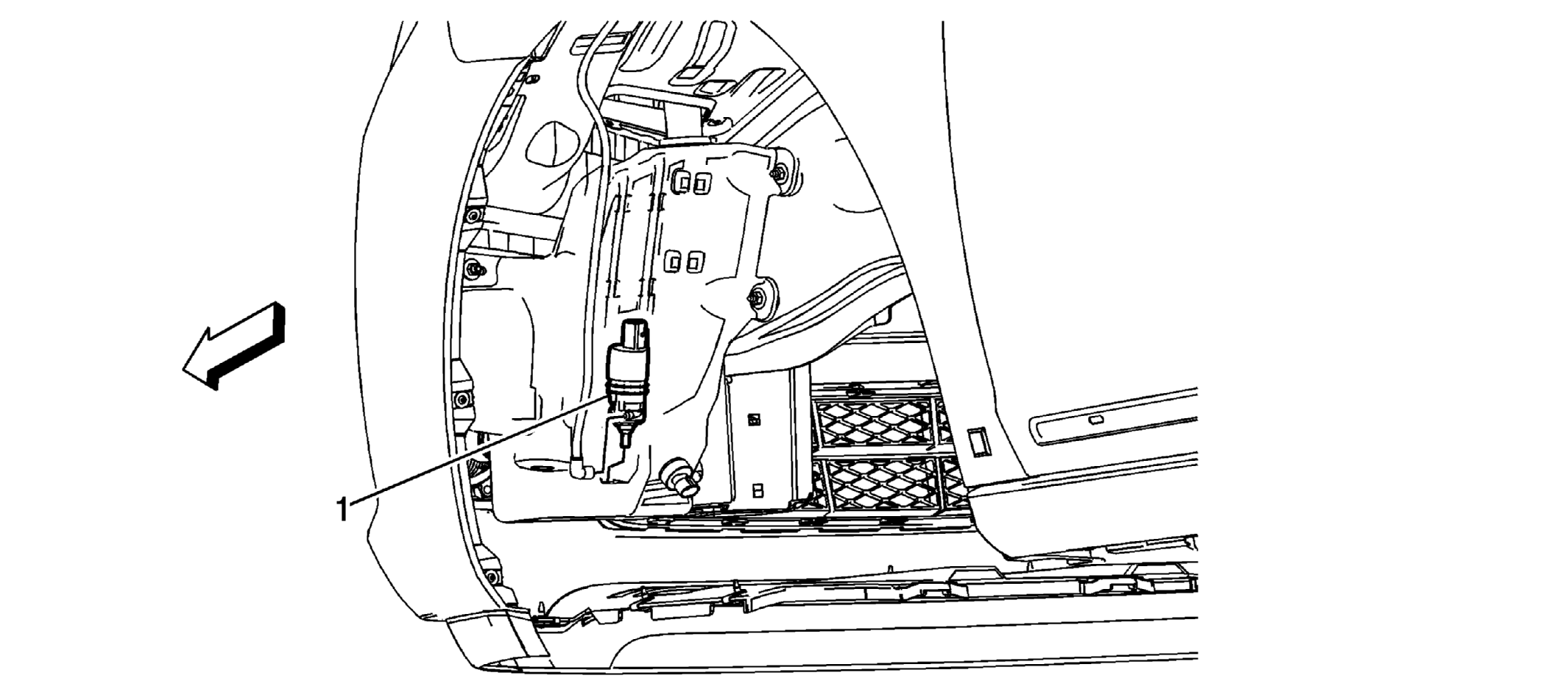

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Disconnect the windshield washer pump electrical connector. Disconnect the windshield washer pump hose from the washer pump spout. Place a clean suitable drain pan under the washer pump area in order to contain loss windshield washer solvent. Pull the top of the washer pump outward in order to disengage the top of the washer pump from the windshield washer container. Use two medium sized flat-bladed tools under the washer pump grommet and pry in opposite, disengage the washer pump from the windshield washer container. Remove and discard the windshield washer pump and grommet.
1	Windshield Washer Pump Assembly TIP: Refill the windshield washer container after the washer pump replacement.

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner.
Disconnect the windshield washer pump electrical connector.
Disconnect the windshield washer pump hose from the washer pump spout.
Place a clean suitable drain pan under the washer pump area in order to contain loss windshield washer solvent.
Pull the top of the washer pump outward in order to disengage the top of the washer pump from the windshield washer container.
Use two medium sized flat-bladed tools under the washer pump grommet and pry in opposite, disengage the washer pump from the windshield washer container.
Remove and discard the windshield washer pump and grommet.

Windshield Washer Pump Assembly
TIP: Refill the windshield washer container after the washer pump replacement.
