Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

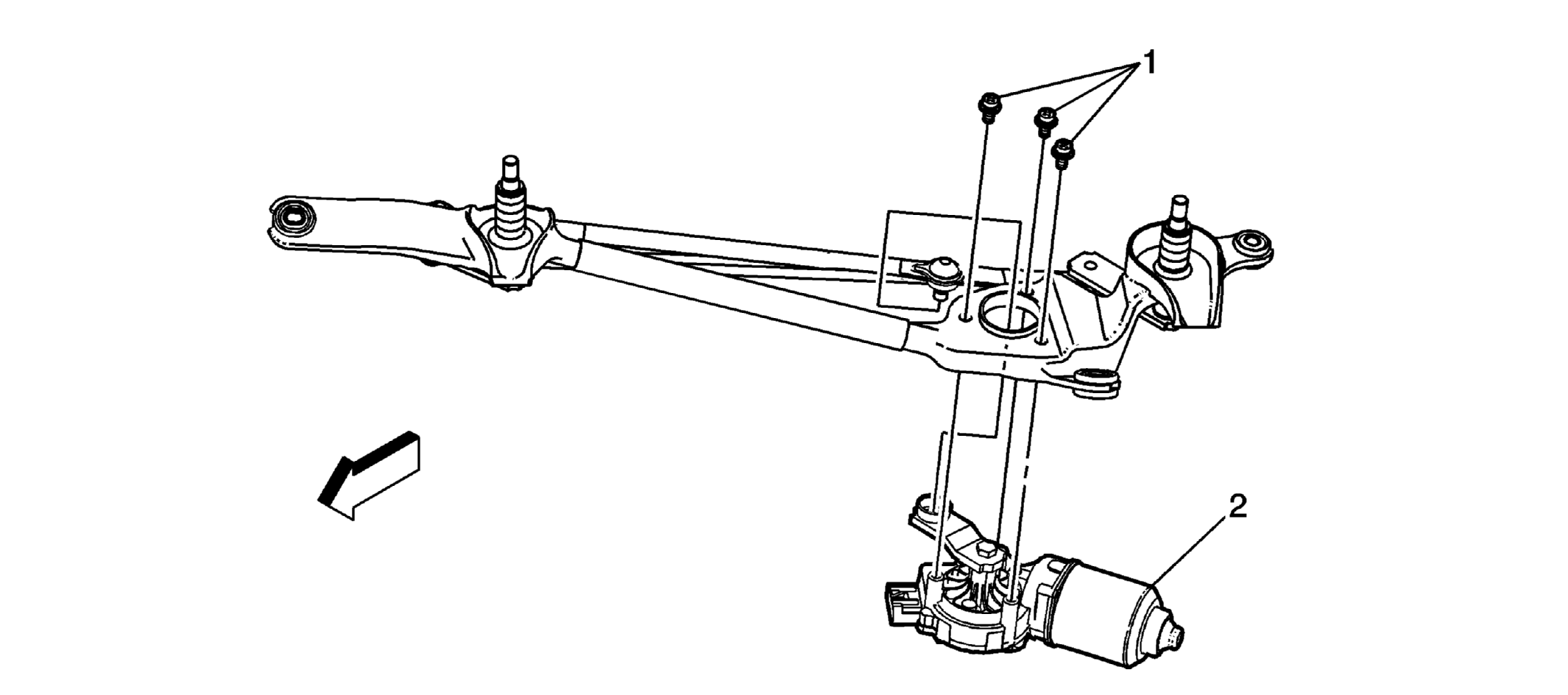

Fig 1: Windshield Wiper Motor & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Windshield Wiper Motor Assembly Procedure The NEW wiper motor is shipped with the crank arm in the PARK Position. Using the J-39232 separator or equivalent, disconnect the crank arm ball socket from the wiper transmission link. Using the J-39529 installer or equivalent, connect the crank arm ball socket to the wiper transmission link. Install the NEW wiper motor to the transmission as shipped. Install the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement . Special Tools J-39232 Wiper Linkage Separator J-39529 Wiper Linkage Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement .

Windshield Wiper Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Windshield Wiper Motor Assembly

Procedure

The NEW wiper motor is shipped with the crank arm in the PARK Position.
Using the J-39232 separator or equivalent, disconnect the crank arm ball socket from the wiper transmission link.
Using the J-39529 installer or equivalent, connect the crank arm ball socket to the wiper transmission link.
Install the NEW wiper motor to the transmission as shipped.
Install the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement .

Special Tools

J-39232 Wiper Linkage Separator
J-39529 Wiper Linkage Installer

For equivalent regional tools, refer to Special Tools .
