Front Side Marker Lamp Bulb Replacement
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

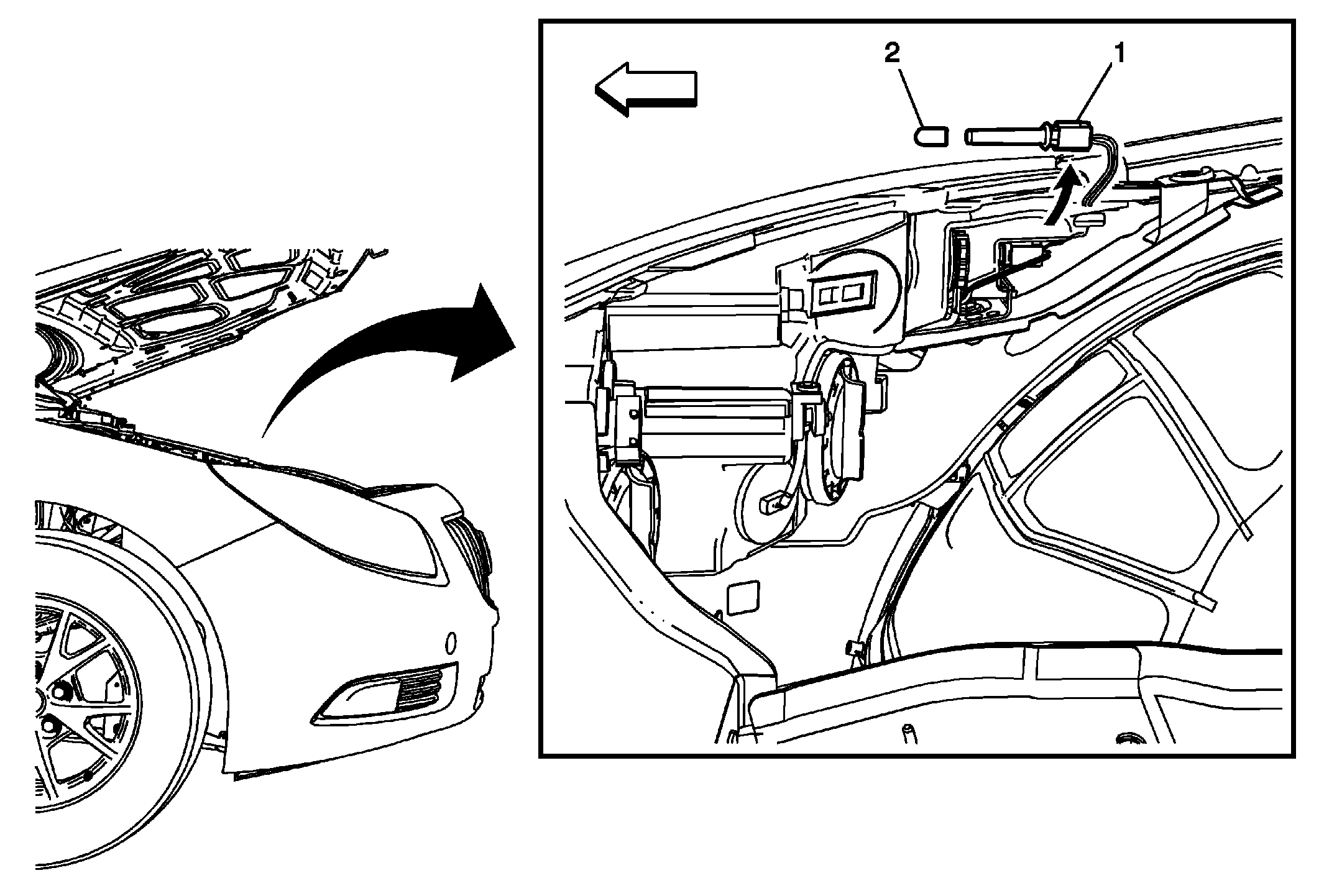

Courtesy of GENERAL MOTORS COMPANY Front Side Marker Lamp Bulb Replacement
| Callout |
Component Name |
Preliminary Procedure
Open and support the hood assembly. |
| 1 |
Front Side Marker Lamp Bulb Socket
TIP:
Rotate the bulb socket counter-clockwise and remove the socket from the headlamp assembly. |
| 2 |
Front Side Marker Lamp Bulb |
