Headlamp Bracket Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

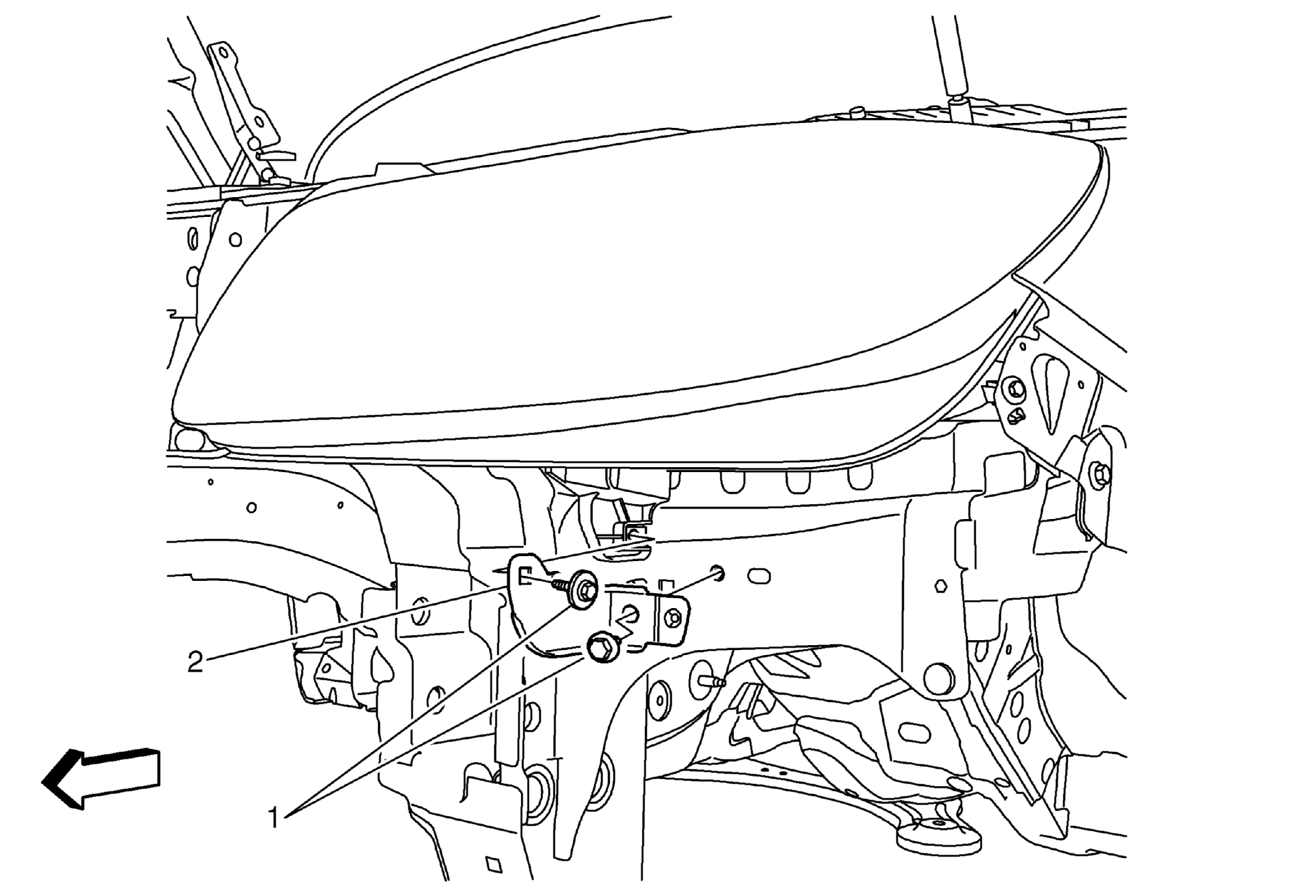

Fig 1: Headlamp Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bracket Fastener (Qty: 2) Procedure Hand tighten the fasteners only.
2	Headlamp Bracket
