Headlamp Leveling Front Suspension Height Sensor Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

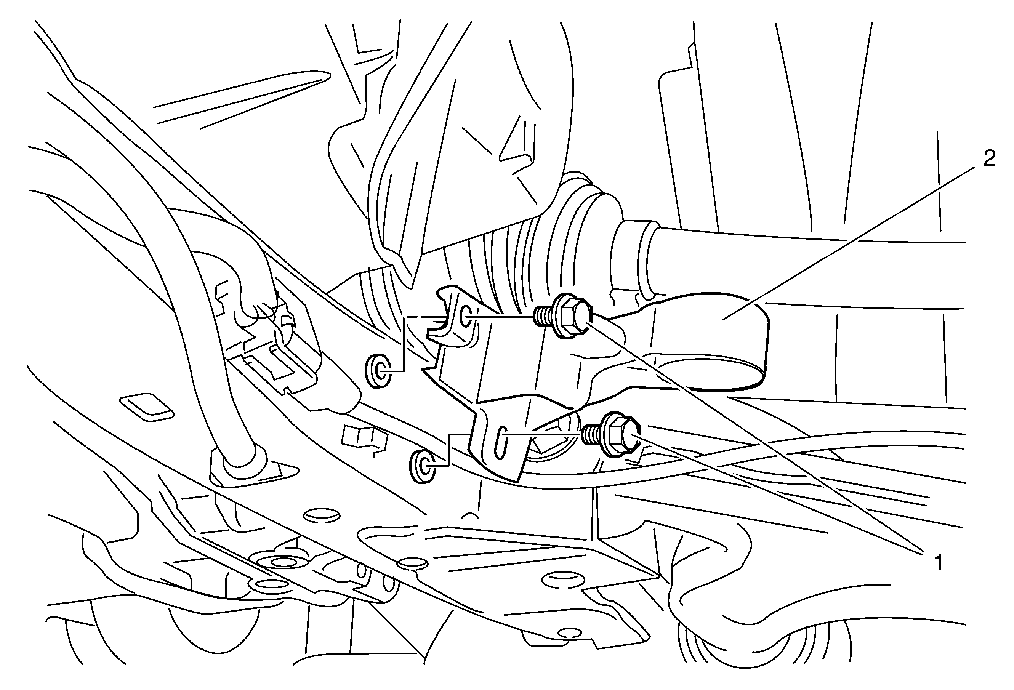

Fig 1: Headlamp Leveling Front Suspension Height Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Headlamp Leveling Front Suspension Height Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Headlamp Leveling Front Suspension Height Sensor Procedure Disconnect the electrical connector. Set up and program the headlamp control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Headlamp Leveling Front Suspension Height Sensor Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Headlamp Leveling Front Suspension Height Sensor

Procedure

Disconnect the electrical connector.
Set up and program the headlamp control module. Refer to Control Module References .
