Tail Lamp Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

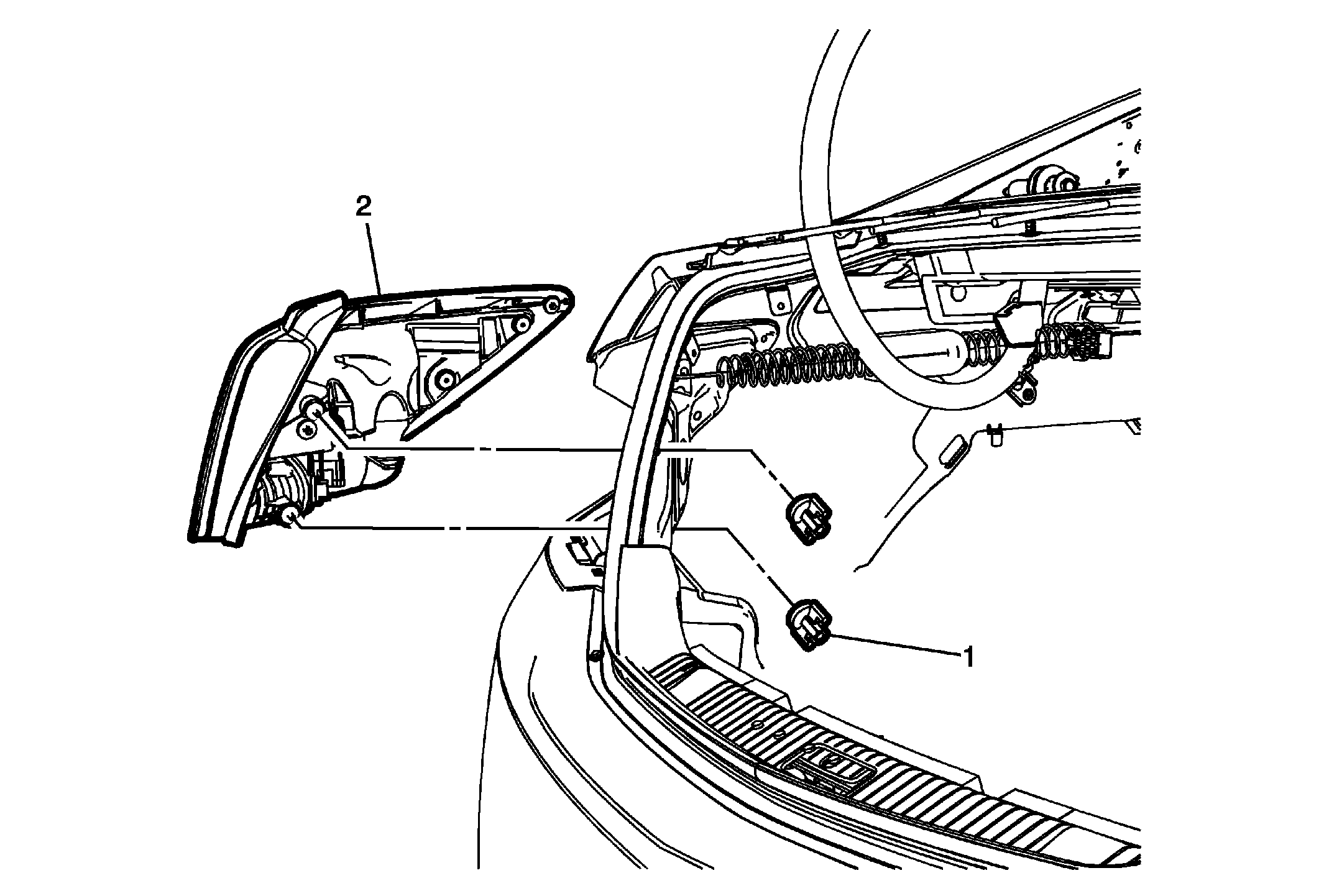

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel. Refer to. Rear Compartment Side Trim Panel Replacement (without HP6) , Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side)
1	Tail Lamp Fastener (Qty: 2) Procedure Hand tighten the fasteners only.
2	Tail Lamp WARNING: Refer to Halogen Bulb Warning . Procedure Lift front of lamp and pull lamp out and rearward. Disconnect the tail lamp electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel. Refer to. Rear Compartment Side Trim Panel Replacement (without HP6) , Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side)

Tail Lamp Fastener (Qty: 2)
Procedure
Hand tighten the fasteners only.

Tail Lamp

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Lift front of lamp and pull lamp out and rearward.
Disconnect the tail lamp electrical connector.
